R 130 W Hyundai Excavator Specs & Dimensions - (1996 - 1998)

Hyundai is the manufacturer of the wheel excavator model R 130 W. Find and download detailed specs and data sheets for this machin…

Hyundai is the manufacturer of the wheel excavator model R 130 W. Find and download detailed specs and data sheets for this machine here.

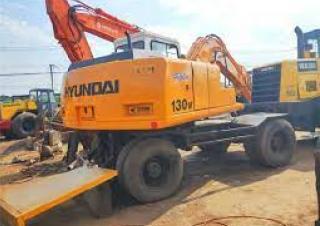

The Hyundai R 130 W is a 11.9t machine with Cummins engine which powers this model with up to 82kW or 109 horse power. The Hyundai R 130 W can be grouped in the smallest machine segment in the wheel excavators category. The R 130 W’s size is 2.49m x 7.72m x 3.59m. The bucket of R 130 W has a capacity of 0,9m³ which is average for this type of machine.

It has been sold without air Overload alert, Diesel particulate filter and Quick hitch hydr. As of 1998. There are more detailed specifications and machine descriptions available in the original Hyundai R 130 W specs data sheet.

The production stopped in 1998, where this R 130 W was available at a new list price between €123000 and €157000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Hyundai currently produces 5 other wheel excavators, which range from 13.9t up to 21.2t - the most visited on LECTURA Specs are R 140 W 9 A, R 180 W 9 A, R 210 W 9 A. Want more detailed specifications? Download the latest Hyundai R 130 W specs data sheet on LECTURA Specs today!

Wheel Excavators Hyundai R 130 W

Visit Hyundai live at

Technical specs - R 130 W Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.9 t
Standard tyres
9.00-20
Bucket capacity
0.9 m³
Transport length
7.72 m
Transport width
2.49 m
Transport height
3.59 m
Engine manuf.
Cummins
Engine type
4BTA3.9
Engine power
82 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai R 130 W FAQ

When was the Hyundai R 130 W manufactured?

The Hyundai R 130 W was manufactured from 1996 to 1998.

How much does the Hyundai R 130 W wheel excavator weigh?

The Hyundai R 130 W wheel excavator weighs 11.9 tons.

What are the transport dimensions of the Hyundai R 130 W wheel excavator?

The Hyundai R 130 W has a transport length of 7.72 meters, a transport width of 2.49 meters, and a transport height of 3.59 meters.

What are the undercarriage tyre specifications of the Hyundai R 130 W wheel excavator?

The Hyundai R 130 W wheel excavator is equipped with standard tyres sized 9.00-20.

What is the bucket capacity of the Hyundai R 130 W wheel excavator?

The Hyundai R 130 W wheel excavator has a bucket capacity of 0.9 cubic meters.

How much is a Hyundai R 130 W Wheel excavator (1996u20131998) worth?

The residual value of the Hyundai R 130 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
