MX 17 G Hydrema Excavator Specs & Dimensions - (2021 - 2026)

Weight: 18.3t – Standard tyres: 10.00-20 – Bucket capacity max.: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport w…

Weight: 18.3t – Standard tyres: 10.00-20 – Bucket capacity max.: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport width: 2.53m

Check out detailed dimensions, specifications, information and technical data for Hydrema MX 17 G excavator manufactured between 2021 - 2026. Get more in-depth insight with Hydrema MX 17 G digger specifications. See information, like: Weight: 18.3t – Standard tyres: 10.00-20 – Bucket capacity max.: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport width: 2.53m and more.

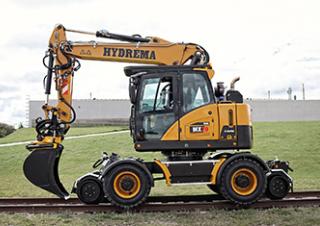

Wheel Excavators Hydrema MX 17 G

Visit Hydrema live at

Technical specs - MX 17 G Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.3 t
Standard tyres
10.00-20
Bucket capacity max.
1 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport width
2.53 m
Transport height
3.12 m
Max. Reach horizontal
9.32 m
Dredging depth
5.41 m
Tear-out force
82 kN
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
B4.5
Engine power
129 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
780 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., transport length, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 17 G FAQ

When was the Hydrema MX 17 G manufactured?

The Hydrema MX 17 G was first produced in 2021.

How much does the Hydrema MX 17 G weigh?

The Hydrema MX 17 G weighs 18.3 tons.

What are the transport dimensions of the Hydrema MX 17 G wheel excavator?

The Hydrema MX 17 G has a transport width of 2.53 meters and a transport height of 3.12 meters.

What is the travel speed of the Hydrema MX 17 G wheel excavator?

The Hydrema MX 17 G has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 17 G wheel excavator?

The Hydrema MX 17 G is equipped with 10.00-20 standard tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hydrema MX 17 G wheel excavator?

The Hydrema MX 17 G has an adjustable boom, a maximum horizontal reach of 9.32 meters, and a dredging depth of 5.41 meters.

What is the tear-out force of the Hydrema MX 17 G wheel excavator?

The Hydrema MX 17 G has a tear-out force of 82 kN.

What is the maximum bucket capacity of the Hydrema MX 17 G wheel excavator?

The Hydrema MX 17 G wheel excavator has a maximum bucket capacity of 1 cubic meter.

How much is a Hydrema MX 17 G Wheel excavator (2021u20132025) worth?

The residual value of the Hydrema MX 17 G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
