MX 17 Hydrema Excavator Specs & Dimensions - (2020 - 2021)

Weight: 18t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport width: 2…

Weight: 18t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport width: 2.536m

Check out detailed dimensions, specifications, information and technical data for Hydrema MX 17 excavator manufactured between 2020 - 2021. Get more in-depth insight with Hydrema MX 17 digger specifications. See information, like: Weight: 18t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport width: 2.536m and more.

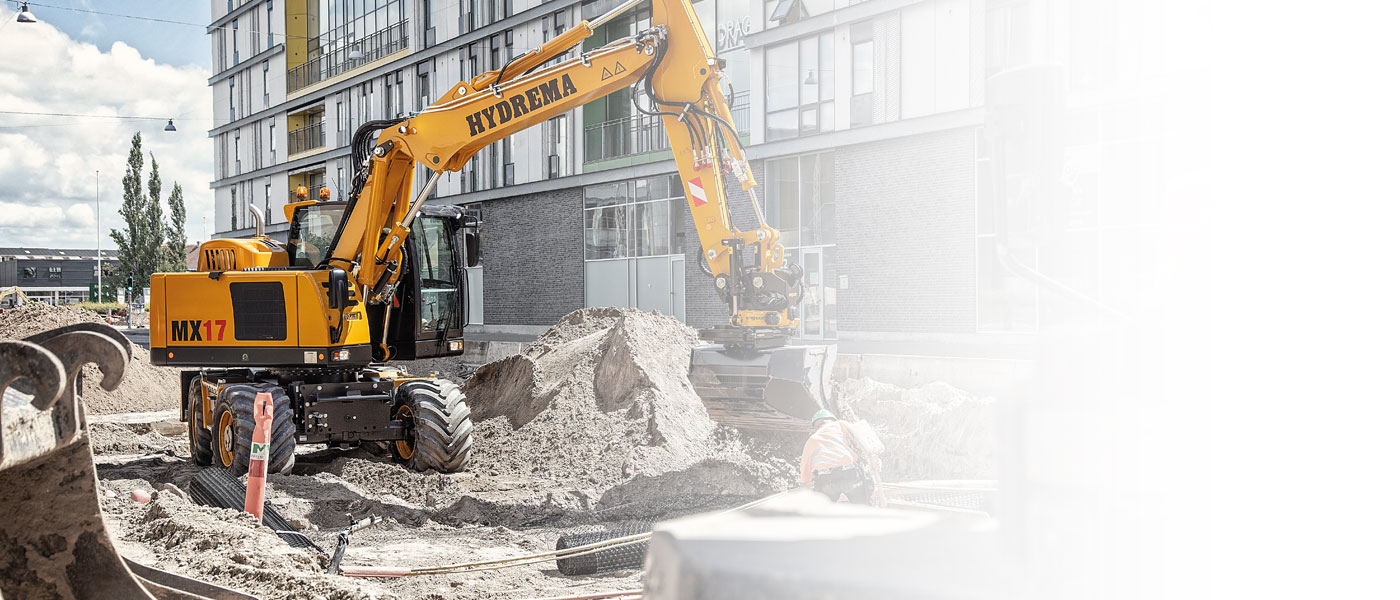

Wheel Excavators Hydrema MX 17
Wheel Excavators Hydrema MX 17
Wheel Excavators Hydrema MX 17
Wheel Excavators Hydrema MX 17

Visit Hydrema live at

Technical specs - MX 17 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport width
2.536 m
Transport height
3.12 m
Max. Reach horizontal
9.32 m
Dredging depth
5.41 m
Tear-out force
82 kN
Bucket width
3 m
Turning radius outside
1.99 m
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
QSB4.5L
Engine power
123 kW
Displacement
4.5 l
Revolutions at max torque
2000 rpm
Max. torque
678/1500 Nm
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., transport length, dipper length, turning radius inside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 17 FAQ

When was the Hydrema MX 17 manufactured?

The Hydrema MX 17 was manufactured from 2020 to 2021.

How much does the Hydrema MX 17 wheel excavator weigh?

The Hydrema MX 17 wheel excavator weighs 18 tons.

What are the transport dimensions of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 has a transport width of 2.54 meters and a transport height of 3.12 meters.

What is the travel speed of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 wheel excavator comes with standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What is the turning radius of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 has an outside turning radius of 1.99 meters.

What are the excavation performance specifications of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 has an adjustable boom, a maximum horizontal reach of 9.32 meters, and a dredging depth of 5.41 meters.

What is the tear-out force of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 wheel excavator has a tear-out force of 82 kN.

What are the bucket specifications of the Hydrema MX 17 wheel excavator?

The Hydrema MX 17 has a bucket capacity of 1 cubic meter and a bucket width of 3 meters.

How much is a Hydrema MX 17 Wheel excavator (2020u20132021) worth?

The residual value of the Hydrema MX 17 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
