EX 100 WD-2 Hitachi Excavator Specs & Dimensions - (1991 - 2015)

Weight: 10.6t – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.19m³ – Bucket capacity max.: 0.59m³ – Transport length: 7.11m – …

Weight: 10.6t – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.19m³ – Bucket capacity max.: 0.59m³ – Transport length: 7.11m – Transport width: 2.46m

Check out detailed dimensions, specifications, information and technical data for Hitachi EX 100 WD-2 excavator manufactured between 1991 - 2015. Get more in-depth insight with Hitachi EX 100 WD-2 digger specifications. See information, like: Weight: 10.6t – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.19m³ – Bucket capacity max.: 0.59m³ – Transport length: 7.11m – Transport width: 2.46m and more.

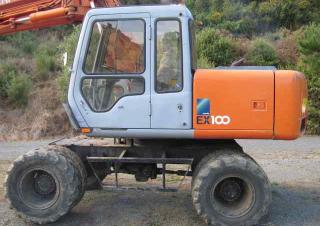

Wheel Excavators Hitachi EX 100 WD-2

Visit Hitachi live at

Technical specs - EX 100 WD-2 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.6 t
Bucket capacity
0.59 m³
Bucket capacity min.
0.19 m³
Bucket capacity max.
0.59 m³
Transport length
7.11 m
Transport width
2.46 m
Transport height
3.4 m
Max. Reach horizontal
7.43 m
Dredging depth
4.2 m
Bucket width
0.95 m
Engine manuf.
Isuzu
Engine type
4BD1T
Engine power
81 kW
Displacement
3.856 l
Revolutions at max torque
1800 rpm
Max. torque
314 Nm
No. of cylinders
4
Cylinder bore x stroke
102x118 mm

More technical details, like: standard tyres, boom, outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Hitachi EX 100 WD-2 FAQ

When was the Hitachi EX 100 WD-2 manufactured?

The Hitachi EX 100 WD-2 was manufactured from 1991 to 2015.

How much does the Hitachi EX 100 WD-2 weigh?

The Hitachi EX 100 WD-2 weighs 10.6 tons.

What are the transport dimensions of the Hitachi EX 100 WD-2 wheel excavator?

The Hitachi EX 100 WD-2 has a transport length of 7.11 meters, a transport width of 2.46 meters, and a transport height of 3.4 meters.

What are the excavation performance specifications of the Hitachi EX 100 WD-2 wheel excavator?

The Hitachi EX 100 WD-2 has a dredging depth of 4.2 meters and a maximum horizontal reach of 7.43 meters.

What are the bucket specifications of the Hitachi EX 100 WD-2 wheel excavator?

The Hitachi EX 100 WD-2 has a bucket capacity ranging from 0.19 to 0.59 cubic meters, with a standard bucket capacity of 0.59 cubic meters and a bucket width of 0.95 meters.

How much is a Hitachi EX 100 WD-2 Wheel excavator (1991u20132015) worth?

The residual value of the Hitachi EX 100 WD-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
