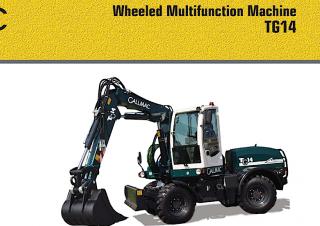

TG 14 Gallmac Excavator Specs & Dimensions - (2012 - 2021)

Manufactured by Gallmac, this is the TG 14 wheel excavator. Find and download detailed specs and data sheets for this machine here…

Manufactured by Gallmac, this is the TG 14 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Gallmac TG 14 is a 14.6t machine with John Deere engine which powers this model with up to 93kW or 124 horse power. The TG 14 is categorised in the medium sized machine segment in the wheel excavators category. The TG 14’s size is 2.45m x 5.6m x 3.18m. The bucket capacity of TG 14 is 0,9m³, which is above average for this type of machine.

The TG 14 is manufactured and distributed with Aircondition, Track guidance and Blade. It has been sold without air Quick hitch hydr., Diesel particulate filter and Quick hitch mech. As of 2017. There are more detailed specifications and machine descriptions available in the original Gallmac TG 14 specs data sheet. Specification sheet is available for a free download in English and Italian - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €214000 and €273000. Production of the TG 14 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 2 other wheel excavators, which range from 9.6t up to 11.5t are produced by Gallmac. Of these, TG 10 and also TG 12 are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #104, this TG 14 wheel excavator has models that date from 2012 to 2017. Want more detailed specifications? Download the latest Gallmac TG 14 specs data sheet on LECTURA Specs today!

Wheel Excavators Gallmac TG 14

Technical specs - TG 14 Gallmac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.6 t
Standard tyres
18R22.5XF
Bucket capacity
0.9 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
5.6 m
Transport width
2.45 m
Transport height
3.18 m
Max. Reach horizontal
7.95 m
Dredging depth
4.5 m
Tear-out force
86 kN
Bucket width
1.3 m
Travel speed
30 km/h
Model series
TG
Engine manuf.
John Deere
Engine type
4045HF285
Engine power
93 kW
Displacement
4.6 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Gallmac TG 14 FAQ

When was the Gallmac TG 14 manufactured?

The Gallmac TG 14 was manufactured from 2012 to 2021.

How much does the Gallmac TG 14 weigh?

The Gallmac TG 14 weighs 14.6 tons.

What are the transport dimensions of the Gallmac TG 14 wheel excavator?

The Gallmac TG 14 has a transport length of 5.6 meters, a transport width of 2.45 meters, and a transport height of 3.18 meters.

What is the travel speed of the Gallmac TG 14 wheel excavator?

The Gallmac TG 14 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Gallmac TG 14 wheel excavator?

The Gallmac TG 14 wheel excavator is equipped with 18R22.5XF standard tyres and has 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Gallmac TG 14 wheel excavator?

The Gallmac TG 14 has a dredging depth of 4.5 meters, a maximum horizontal reach of 7.95 meters, and features an adjustable boom.

What is the tear-out force of the Gallmac TG 14 wheel excavator?

The Gallmac TG 14 wheel excavator has a tear-out force of 86 kN.

What are the specifications of the primary work tool on the Gallmac TG 14 wheel excavator?

The primary work tool of the Gallmac TG 14 wheel excavator has a bucket capacity of 0.9 cubic meters and a bucket width of 1.3 meters.

How much is a Gallmac TG 14 Wheel excavator (2012u20132021) worth?

The residual value of the Gallmac TG 14 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
