E 145 WT Fiat Kobelco Excavator Specs & Dimensions - (2003 - 2005)

The E 145 WT wheel excavator model is manufactured by Fiat Kobelco. Find and download detailed specs and data sheets for this mach…

The E 145 WT wheel excavator model is manufactured by Fiat Kobelco. Find and download detailed specs and data sheets for this machine here.

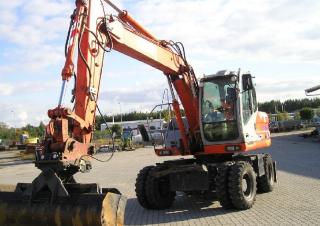

The Fiat Kobelco E 145 WT is a 14.5t machine with Iveco engine which powers this model with up to 83kW or 111 horse power. The E 145 WT is categorised in the medium sized machine segment in the wheel excavators category. The model's dimensions are 7.74m x 2.53m x 3.11m. The bucket of E 145 WT has a capacity of 0,74m³ which is average for this type of machine.

Since 2003, this model has included Blade, Aircondition and Overload alert. It has been sold without air Material Handling Excavator, Quick hitch mech. And Cabin adjustment as of 2005. There are more detailed specifications and machine descriptions available in the original Fiat Kobelco E 145 WT specs data sheet. Download a free data sheet in English and German from LECTURA Specs.

This model can be acquired for a list price between €130000 and €165000. Production of the E 145 WT stopped in 2005. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Fiat Kobelco currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Fiat Kobelco E 145 WT specs data sheet on LECTURA Specs today!

Wheel Excavators Fiat Kobelco E 145 WT

Technical specs - E 145 WT Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Standard tyres
10.00-20
Bucket capacity
0.74 m³
Boom
VA
Transport length
7.74 m
Transport width
2.53 m
Transport height
3.11 m
Max. Reach horizontal
9.36 m
Dredging depth
5.18 m
Bucket width
2.44 m
Engine manuf.
Iveco
Engine type
F4BE0484B*D601
Engine power
83 kW
Displacement
3.9 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat Kobelco E 145 WT FAQ

When was the Fiat Kobelco E 145 WT manufactured?

The Fiat Kobelco E 145 WT was manufactured from 2003 to 2005.

How much does the Fiat Kobelco E 145 WT weigh?

The Fiat Kobelco E 145 WT weighs 14.5 tons.

What are the transport dimensions of the Fiat Kobelco E 145 WT wheel excavator?

The Fiat Kobelco E 145 WT has a transport length of 7.74 meters, a transport width of 2.53 meters, and a transport height of 3.11 meters.

What are the undercarriage specifications of the Fiat Kobelco E 145 WT?

The Fiat Kobelco E 145 WT is equipped with standard tyres sized 10.00-20.

What are the excavation performance specifications of the Fiat Kobelco E 145 WT wheel excavator?

The Fiat Kobelco E 145 WT has a dredging depth of 5.18 meters, a maximum horizontal reach of 9.36 meters, and features an adjustable boom.

What are the bucket specifications of the Fiat Kobelco E 145 WT wheel excavator?

The bucket of the Fiat Kobelco E 145 WT has a capacity of 0.74 cubic meters and a width of 2.44 meters.

How much is a Fiat Kobelco E 145 WT Wheel excavator (2003u20132005) worth?

The residual value of the Fiat Kobelco E 145 WT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
