EX 165 W Fiat-Hitachi Excavator Specs & Dimensions - (1999 - 2002)

Model rating
10,00 / 10

Fiat-Hitachi is the manufacturer of the wheel excavator model EX 165 W. Find and download detailed specs and data sheets for this …

Fiat-Hitachi is the manufacturer of the wheel excavator model EX 165 W. Find and download detailed specs and data sheets for this machine here.

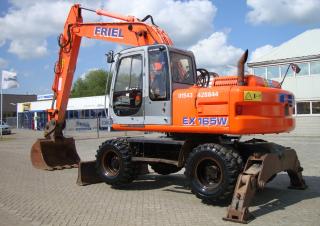

This wheel excavator is built to provide up to 113kW or 151 horse power, delivered from its powerful Cummins engine to the 17.3t EX 165 W machine. The EX 165 W is categorised in the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.28m x 2.53m x 3.03m. The bucket capacity of EX 165 W is 0,93m³, which is above average for this type of machine.

Quick hitch hydr., Material Handling Excavator and Blade are not provided on this model as of 2002. There are more detailed specifications and machine descriptions available in the original Fiat-Hitachi EX 165 W specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €142000 and €181000. Production of the EX 165 W stopped in 2002. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Fiat-Hitachi. Of these, are the most frequently visited on LECTURA Specs. We can see currently about models of the EX 165 W wheel excavator with an average age of 17 years and average price of €24800. Want more detailed specifications? Download the latest Fiat-Hitachi EX 165 W specs data sheet on LECTURA Specs today!

Wheel Excavators Fiat-Hitachi EX 165 W

Technical specs - EX 165 W Fiat-Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.3 t
Standard tyres
10.00-20
Bucket capacity
0.93 m³
Transport length
8.28 m
Transport width
2.53 m
Transport height
3.03 m
Engine manuf.
Cummins
Engine type
6BT5.9C
Engine power
113 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat-Hitachi EX 165 W FAQ

When was the Fiat-Hitachi EX 165 W manufactured?

The Fiat-Hitachi EX 165 W was manufactured from 1999 to 2002.

How much does the Fiat-Hitachi EX 165 W weigh?

The Fiat-Hitachi EX 165 W weighs 17.3 tons.

What are the transport dimensions of the Fiat-Hitachi EX 165 W wheel excavator?

The Fiat-Hitachi EX 165 W has a transport length of 8.28 meters, a transport width of 2.53 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the Fiat-Hitachi EX 165 W wheel excavator?

The Fiat-Hitachi EX 165 W wheel excavator is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Fiat-Hitachi EX 165 W wheel excavator?

The bucket capacity of the Fiat-Hitachi EX 165 W wheel excavator is 0.93 cubic meters.

How much is a Fiat-Hitachi EX 165 W Wheel excavator (1999u20132002) worth?

The residual value of the Fiat-Hitachi EX 165 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
