DX190W Doosan Excavator Specs & Dimensions - (2021 - 2023)

Weight: 17.8t – Standard tyres: 10.00-20-14PR – Bucket capacity: 0.93m³ – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 0.9…

Weight: 17.8t – Standard tyres: 10.00-20-14PR – Bucket capacity: 0.93m³ – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 0.93m³ – Transport length: 8.659m

Check out detailed dimensions, specifications, information and technical data for Doosan DX190W excavator manufactured between 2021 - 2023. Get more in-depth insight with Doosan DX190W digger specifications. See information, like: Weight: 17.8t – Standard tyres: 10.00-20-14PR – Bucket capacity: 0.93m³ – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 0.93m³ – Transport length: 8.659m and more.

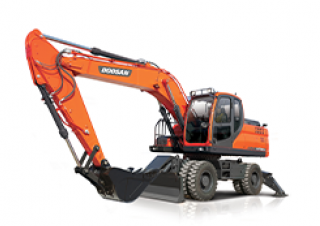

Wheel Excavators Doosan DX190W
Wheel Excavators Doosan DX190W
Wheel Excavators Doosan DX190W
Wheel Excavators Doosan DX190W
Wheel Excavators Doosan DX190W
Wheel Excavators Doosan DX190W

Technical specs - DX190W Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.8 t
Standard tyres
10.00-20-14PR
Bucket capacity
0.93 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
0.93 m³
Transport length
8.659 m
Transport width
2.496 m
Transport height
3.31 m
Max. Reach horizontal
8.83 m
Dredging depth
5.565 m
Tear-out force
139.25 kN
Bucket width
1.267 m
Travel speed
36 km/h
Model series
DX
Engine manuf.
Doosan
Engine type
DL06
Engine power
116 kW
Displacement
5.89 l
Revolutions at max torque
1400 rpm
Max. torque
686 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Tier 3

More technical details, like: boom, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX190W FAQ

When was the Doosan DX190W manufactured?

The Doosan DX190W was manufactured from 2021 to 2023.

How much does the Doosan DX190W wheel excavator weigh?

The Doosan DX190W wheel excavator weighs 17.8 tons.

What are the transport dimensions of the Doosan DX190W wheel excavator?

The Doosan DX190W has a transport length of 8.66 meters, a width of 2.5 meters, and a height of 3.31 meters.

What is the travel speed of the Doosan DX190W wheel excavator?

The Doosan DX190W has a travel speed of 36 km/h.

What are the undercarriage specifications of the Doosan DX190W wheel excavator?

The Doosan DX190W wheel excavator is equipped with standard tyres sized 10.00-20-14PR.

What is the excavation performance of the Doosan DX190W wheel excavator?

The Doosan DX190W wheel excavator has a dredging depth of 5.565 meters and a maximum horizontal reach of 8.83 meters.

What is the tear-out force of the Doosan DX190W wheel excavator?

The Doosan DX190W wheel excavator has a tear-out force of 139.25 kN.

What are the bucket specifications of the Doosan DX190W wheel excavator?

The Doosan DX190W wheel excavator has a bucket capacity of 0.93 cubic meters, with a minimum capacity of 0.38 cubic meters and a bucket width of 1.267 meters.

How much is a Doosan DX190W Wheel excavator (2021u20132023) worth?

The residual value of the Doosan DX190W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
