DX160W Doosan Excavator Specs & Dimensions - (2021 - 2023)

Weight: 14.75t – Standard tyres: 9.0-20-14PR – Bucket capacity: 0.76m³ – Bucket capacity min.: 0.24m³ – Bucket capacity max.: 0.76…

Weight: 14.75t – Standard tyres: 9.0-20-14PR – Bucket capacity: 0.76m³ – Bucket capacity min.: 0.24m³ – Bucket capacity max.: 0.76m³ – Transport length: 7.235m

Check out detailed dimensions, specifications, information and technical data for Doosan DX160W excavator manufactured between 2021 - 2023. Get more in-depth insight with Doosan DX160W digger specifications. See information, like: Weight: 14.75t – Standard tyres: 9.0-20-14PR – Bucket capacity: 0.76m³ – Bucket capacity min.: 0.24m³ – Bucket capacity max.: 0.76m³ – Transport length: 7.235m and more.

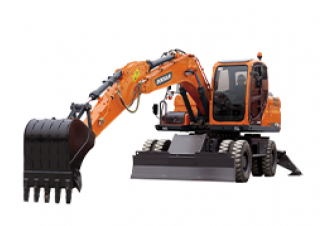

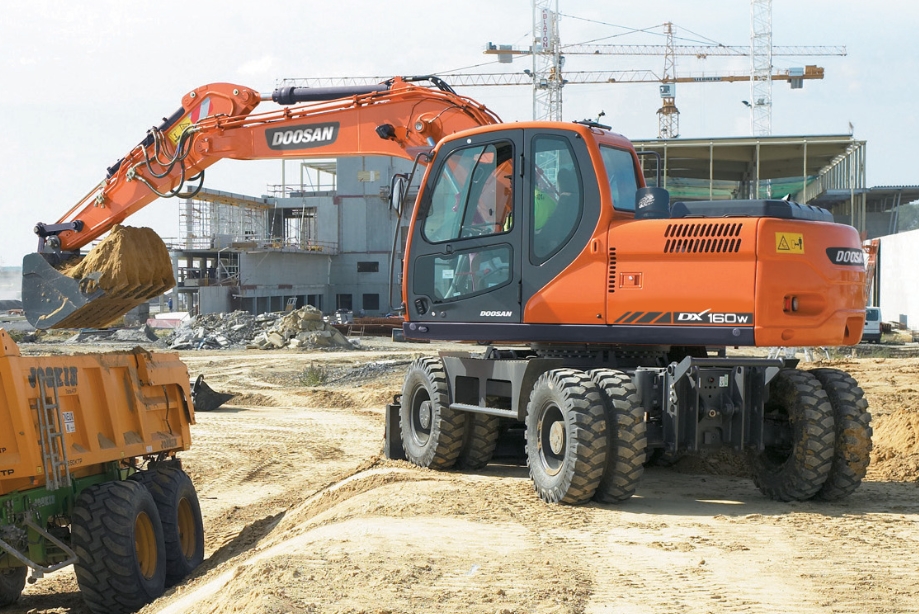

Wheel Excavators Doosan DX160W
Wheel Excavators Doosan DX160W
Wheel Excavators Doosan DX160W
Wheel Excavators Doosan DX160W
Wheel Excavators Doosan DX160W
Wheel Excavators Doosan DX160W

Technical specs - DX160W Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.75 t
Standard tyres
9.0-20-14PR
Bucket capacity
0.76 m³
Bucket capacity min.
0.24 m³
Bucket capacity max.
0.76 m³
Transport length
7.235 m
Transport width
2.496 m
Transport height
3.351 m
Max. Reach horizontal
7.52 m
Dredging depth
4.58 m
Tear-out force
99.5 kN
Bucket width
1.255 m
Travel speed
37 km/h
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
99 kW
Displacement
5.89 l
Revolutions at max torque
1400 rpm
Max. torque
490 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Tier 2

More technical details, like: boom, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX160W FAQ

When was the Doosan DX160W manufactured?

The Doosan DX160W was manufactured from 2021 to 2023.

How much does the Doosan DX160W wheel excavator weigh?

The Doosan DX160W wheel excavator weighs 14.75 tons.

What are the transport dimensions of the Doosan DX160W wheel excavator?

The Doosan DX160W has a transport length of 7.24 meters, a transport width of 2.5 meters, and a transport height of 3.35 meters.

What is the travel speed of the Doosan DX160W wheel excavator?

The Doosan DX160W wheel excavator has a travel speed of 37 km/h.

What are the undercarriage specifications of the Doosan DX160W wheel excavator?

The Doosan DX160W wheel excavator is equipped with standard tyres sized 9.0-20-14PR.

What are the excavation performance specifications of the Doosan DX160W wheel excavator?

The Doosan DX160W wheel excavator has a dredging depth of 4.58 meters and a maximum horizontal reach of 7.52 meters.

What is the tear-out force of the Doosan DX160W wheel excavator?

The Doosan DX160W wheel excavator has a tear-out force of 99.5 kN.

What are the bucket specifications of the Doosan DX160W wheel excavator?

The Doosan DX160W wheel excavator has a bucket capacity of 0.76 cubic meters, with a maximum capacity of 0.76 cubic meters and a minimum capacity of 0.24 cubic meters, and a bucket width of 1.255 meters.

How much is a Doosan DX160W Wheel excavator (2021u20132023) worth?

The residual value of the Doosan DX160W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
