DX160W-7 Develon Excavator Specs & Dimensions - (2023 - 2026)

Weight: 15.84t – Standard tyres: 10.00-20 16PR – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.51m³ – Bucket capacity max.: 0.…

Weight: 15.84t – Standard tyres: 10.00-20 16PR – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.51m³ – Bucket capacity max.: 0.59m³ – Boom: VA

Check out detailed dimensions, specifications, information and technical data for Develon DX160W-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX160W-7 digger specifications. See information, like: Weight: 15.84t – Standard tyres: 10.00-20 16PR – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.51m³ – Bucket capacity max.: 0.59m³ – Boom: VA and more.

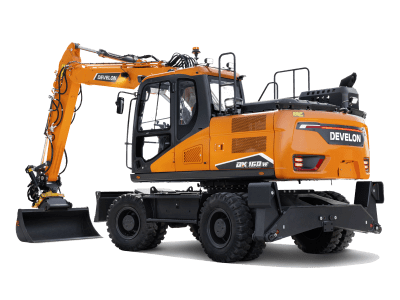

Wheel Excavators Develon DX160W-7

Visit Develon live at

Technical specs - DX160W-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.84 t
Standard tyres
10.00-20 16PR
Bucket capacity
0.59 m³
Bucket capacity min.
0.51 m³
Bucket capacity max.
0.59 m³
Boom
VA
Outrigger stabilisers
4 2/4-fold
Transport length
8.103 m
Transport width
2.495 m
Transport height
2.688 m
Max. Reach horizontal
8.05 m
Dredging depth
5.025 m
Bucket width
0.997 m
Dipper length
2.1 m
Turning radius outside
5.448 m
Travel speed
37 km/h
Model series
DX
Engine manuf.
Develon
Engine type
DL06V
Engine power
103 kW
Dimension lxwxh
1094x847x948 mm
Displacement
5.89 l
Revolutions at max torque
2000 rpm
Max. torque
588/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Stage V

More technical details, like: tear-out force, turning radius inside are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX160W-7 FAQ

When was the Develon DX160W-7 manufactured?

The Develon DX160W-7 was first produced in 2023.

How much does the Develon DX160W-7 wheel excavator weigh?

The Develon DX160W-7 wheel excavator weighs 15.84 tons.

What are the transport dimensions of the Develon DX160W-7 wheel excavator?

The Develon DX160W-7 has a transport length of 8.103 meters, a transport width of 2.495 meters, and a transport height of 2.688 meters.

What is the travel speed of the Develon DX160W-7 wheel excavator?

The Develon DX160W-7 has a travel speed of 37 km/h.

What are the undercarriage specifications of the Develon DX160W-7?

The Develon DX160W-7 has 10.00-20 16PR standard tyres and 4 outrigger stabilisers of the 2/4-fold type.

What is the turning radius of the Develon DX160W-7 wheel excavator?

The Develon DX160W-7 has an outside turning radius of 5.448 meters.

What are the excavation performance specifications of the Develon DX160W-7 wheel excavator?

The Develon DX160W-7 has an adjustable boom, a dredging depth of 5.025 meters, a maximum horizontal reach of 8.05 meters, and a dipper length of 2.1 meters.

What are the bucket specifications of the Develon DX160W-7 wheel excavator?

The Develon DX160W-7 has a bucket capacity ranging from 0.51 to 0.59 cubic meters, with a bucket width of 0.997 meters.

How much is a Develon DX160W-7 Wheel excavator (2023u20132025) worth?

The residual value of the Develon DX160W-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Events

Visit Develon live at

Machine inspection

Ask for inspection of your Develon DX160W-7 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Develon DX160W-7 with similar Wheel Excavators

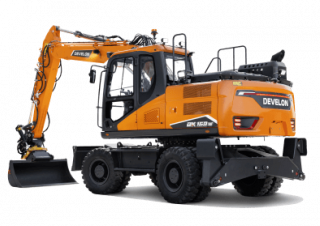

Develon DX160W-7
