M320F Caterpillar Excavator Specs & Dimensions - (2017 - 2021)

The M 320 F wheel excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machin…

The M 320 F wheel excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Caterpillar engine, this M 320 F 19.2t machine can provide 129kW or 172 horse power for the wheel excavator. The M 320 F is categorised in the biggest machine segment in the wheel excavators category. The bucket capacity of M 320 F is 0,91m³, which is above average for this type of machine.

The Caterpillar M 320 F has been equipped and sold with Aircondition and Blade. It does not include Quick hitch hydr., Material Handling Excavator and Quick hitch mech.. There are more detailed specifications and machine descriptions available in the original Caterpillar M 320 F specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €294000 and €374000. Production of the M 320 F continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Caterpillar models of this type on LECTURA Specs are the M 318 F, M 322 F and M 314 F, and 19 other wheel excavators, which currently range from 13.7t up to 39.5t are also available. This M 320 F wheel excavator, which has been in production between 2014 and 2017 ranks in the LECTURA index at #10. Want more detailed specifications? Download the latest Caterpillar M 320 F specs data sheet on LECTURA Specs today!

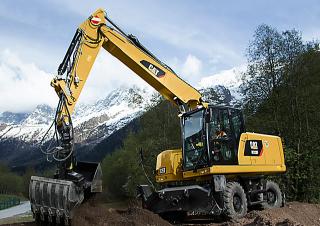

Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F
Wheel Excavators Caterpillar M320F

Technical specs - M320F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.52 t
Standard tyres
10.00-20
Bucket capacity
0.98 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.915 m
Transport width
2.55 m
Transport height
3.32 m
Max. Reach horizontal
9.295 m
Dredging depth
5.98 m
Tear-out force
137 kN
Bucket width
1.2 m
Turning radius outside
6.4 m
Travel speed
35 km/h
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
126 kW
Displacement
7.01 l
Revolutions at max torque
1400 rpm
Max. torque
830 Nm
No. of cylinders
6
Cylinder bore x stroke
105x135 mm
Emission level
Stage IV

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, dipper short, boost tearout artic, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M320F FAQ

When was the Caterpillar M320F manufactured?

The Caterpillar M320F was manufactured from 2017 to 2021.

How much does the Caterpillar M320F wheel excavator weigh?

The Caterpillar M320F wheel excavator weighs 19.52 tons.

What are the transport dimensions of the Caterpillar M320F wheel excavator?

The Caterpillar M320F has a transport length of 8.92 meters, a transport width of 2.55 meters, and a transport height of 3.32 meters.

What is the travel speed of the Caterpillar M320F wheel excavator?

The Caterpillar M320F wheel excavator has a travel speed of 35 km/h.

What are the undercarriage specifications of the Caterpillar M320F wheel excavator?

The Caterpillar M320F wheel excavator is equipped with standard tyres sized 10.00-20 and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M320F wheel excavator?

The Caterpillar M320F has an outside turning radius of 6.4 meters.

What are the excavation performance specifications of the Caterpillar M320F wheel excavator?

The Caterpillar M320F wheel excavator has a dredging depth of 5.98 meters, a maximum horizontal reach of 9.295 meters, and features an adjustable boom.

What is the tear-out force of the Caterpillar M320F wheel excavator?

The Caterpillar M320F wheel excavator has a tear-out force of 137 kN.

What are the bucket specifications of the Caterpillar M320F wheel excavator?

The Caterpillar M320F wheel excavator has a bucket capacity of 0.98 cubic meters and a bucket width of 1.2 meters.
