M317F Caterpillar Excavator Specs & Dimensions - (2017 - 2021)

Manufactured by Caterpillar, this is the M 317 F wheel excavator. Find and download detailed specs and data sheets for this machin…

Manufactured by Caterpillar, this is the M 317 F wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Caterpillar M 317 F is a 15.32t machine with Caterpillar engine which powers this model with up to 110kW or 147 horse power. This Caterpillar wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.25m x 2.545m x 3.28m. The bucket capacity of M 317 F is 0.31m³, which is above average for this type of machine.

It does not include Overload alert, Aircondition and Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Caterpillar M 317 F specs data sheet.

At present, 19 other wheel excavators, which range from 13.7t up to 39.5t are produced by Caterpillar. Of these, M 318 F, M 314 F and also M 320 F are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Caterpillar M 317 F specs data sheet on LECTURA Specs today!

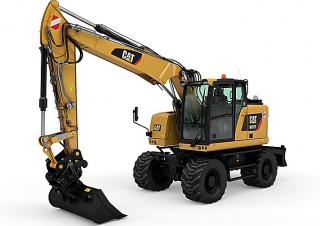

Wheel Excavators Caterpillar M317F

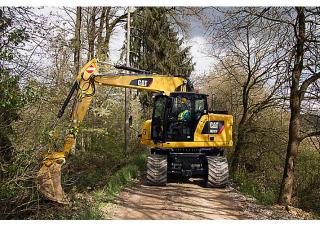

Wheel Excavators Caterpillar M317F
Wheel Excavators Caterpillar M317F
Wheel Excavators Caterpillar M317F

Technical specs - M317F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.55 t
Standard tyres
10.00-20
Bucket capacity
0.8 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.455 m
Transport width
2.71 m
Transport height
3.3 m
Max. Reach horizontal
8.87 m
Dredging depth
5.69 m
Tear-out force
92 kN
Bucket width
1.1 m
Turning radius outside
6.4 m
Travel speed
30 km/h
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
112 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
710 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
Stage IV

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, number of articulated booms, total number of dippers - articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, number of articulated booms, total number of dippers - articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, auto idle, engine auto shut off, rated speed, engine output - net, engine torque, torque speed, transmission type, number of tyres - standard, tyre size - standard, service brake type, service brake actuation, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, sound level standard, sound level internal, sound level external, dipper standard, boost tearout artic, max bucket breakout, artic boom, dipper longest, boost tearout artic, main pumps - maximum flow, transmission pump flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M317F FAQ

When was the Caterpillar M317F manufactured?

The Caterpillar M317F was manufactured from 2017 to 2021.

How much does the Caterpillar M317F wheel excavator weigh?

The Caterpillar M317F wheel excavator weighs 18.55 tons.

What are the transport dimensions of the Caterpillar M317F wheel excavator?

The Caterpillar M317F has a transport length of 8.46 meters, a transport width of 2.71 meters, and a transport height of 3.3 meters.

What is the travel speed of the Caterpillar M317F wheel excavator?

The Caterpillar M317F has a travel speed of 30 km/h.

What are the undercarriage specifications of the Caterpillar M317F wheel excavator?

The Caterpillar M317F is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M317F wheel excavator?

The Caterpillar M317F has an outside turning radius of 6.4 meters.

What are the excavation performance specifications of the Caterpillar M317F wheel excavator?

The Caterpillar M317F wheel excavator has a dredging depth of 5.69 meters, a maximum horizontal reach of 8.87 meters, and features an adjustable boom.

What is the tear-out force of the Caterpillar M317F wheel excavator?

The Caterpillar M317F wheel excavator has a tear-out force of 92 kN.

What are the specifications of the primary work tool bucket on the Caterpillar M317F?

The primary work tool bucket of the Caterpillar M317F has a capacity of 0.8 cubic meters and a width of 1.1 meters.
