M316C Caterpillar Excavator Specs & Dimensions - (2005 - 2011)

Weight: 18.2t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.35m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Transport…

Weight: 18.2t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.35m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Transport length: 8.4m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M316C excavator manufactured between 2005 - 2011. Get more in-depth insight with Caterpillar M316C digger specifications. See information, like: Weight: 18.2t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.35m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Transport length: 8.4m and more.

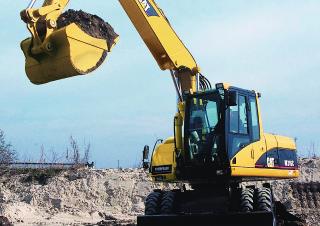

Wheel Excavators Caterpillar M316C

Technical specs - M316C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.2 t
Standard tyres
10.00-20 16PR
Bucket capacity min.
0.35 m³
Bucket capacity max.
0.99 m³
Boom
MB
Transport length
8.4 m
Transport width
2.55 m
Transport height
3.17 m
Max. Reach horizontal
9.17 m
Dredging depth
5.87 m
Tear-out force
93 kN
Bucket width
1.3 m
Travel speed
34 km/h
Engine manuf.
Caterpillar
Engine type
3056E ATAAC
Engine power
103 kW
Displacement
6 l
No. of cylinders
6
Cylinder bore x stroke
100x127 mm
Emission level
Tier 2

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M316C FAQ

When was the Caterpillar M316C manufactured?

The Caterpillar M316C was manufactured from 2005 to 2011.

How much does the Caterpillar M316C weigh?

The Caterpillar M316C weighs 18.2 tons.

What are the transport dimensions of the Caterpillar M316C wheel excavator?

The Caterpillar M316C has a transport length of 8.4 meters, a transport width of 2.55 meters, and a transport height of 3.17 meters.

What is the travel speed of the Caterpillar M316C wheel excavator?

The Caterpillar M316C wheel excavator has a travel speed of 34 km/h.

What are the undercarriage tyre specifications of the Caterpillar M316C wheel excavator?

The Caterpillar M316C wheel excavator is equipped with standard tyres sized 10.00-20 16PR.

What are the excavation performance specifications of the Caterpillar M316C wheel excavator?

The Caterpillar M316C has a dredging depth of 5.87 meters, a maximum horizontal reach of 9.17 meters, and features a monobloc boom.

What are the power ratings of the Caterpillar M316C wheel excavator?

There are no power rating data available for the Caterpillar M316C wheel excavator in the provided source data.

What are the bucket specifications of the Caterpillar M316C wheel excavator?

The Caterpillar M316C wheel excavator has a bucket with a maximum capacity of 0.99 cubic meters, a minimum capacity of 0.35 cubic meters, and a width of 1.3 meters.

How much is a Caterpillar M316C Wheel excavator (2005u20132011) worth?

The residual value of the Caterpillar M316C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
