M315D Caterpillar Excavator Specs & Dimensions - (2007 - 2021)

Weight: 17.9t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.34m³ – Bucket capacity max.: 1.12m³ – Boom: MB – Transport…

Weight: 17.9t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.34m³ – Bucket capacity max.: 1.12m³ – Boom: MB – Transport length: 8.33m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M315D excavator manufactured between 2007 - 2021. Get more in-depth insight with Caterpillar M315D digger specifications. See information, like: Weight: 17.9t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.34m³ – Bucket capacity max.: 1.12m³ – Boom: MB – Transport length: 8.33m and more.

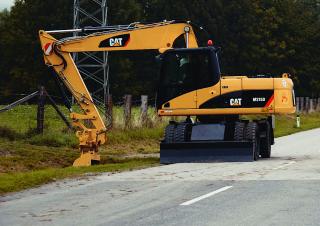

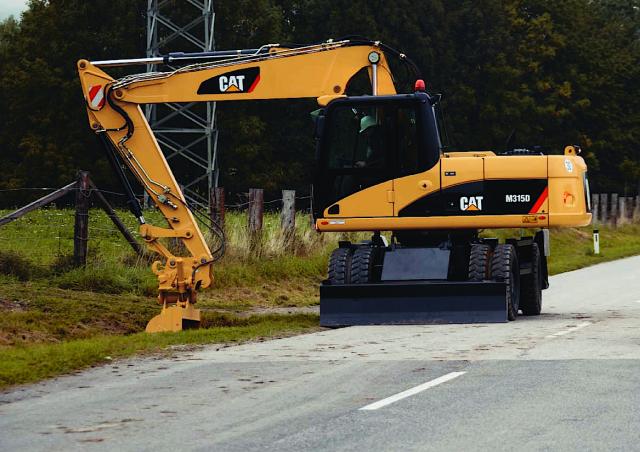

Wheel Excavators Caterpillar M315D

Technical specs - M315D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.9 t
Standard tyres
10.00-20 16PR
Bucket capacity min.
0.34 m³
Bucket capacity max.
1.12 m³
Boom
MB
Transport length
8.33 m
Transport width
2.55 m
Transport height
3.15 m
Max. Reach horizontal
9.17 m
Dredging depth
5.89 m
Tear-out force
101 kN
Bucket width
1.4 m
Turning radius outside
8.3 m
Travel speed
34 km/h
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
101 kW
Displacement
4.4 l
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
Tier 3

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M315D FAQ

When was the Caterpillar M315D manufactured?

The Caterpillar M315D was manufactured from 2007 to 2021.

How much does the Caterpillar M315D wheel excavator weigh?

The Caterpillar M315D wheel excavator weighs 17.9 tons.

What are the transport dimensions of the Caterpillar M315D wheel excavator?

The Caterpillar M315D has a transport length of 8.33 meters, a transport width of 2.55 meters, and a transport height of 3.15 meters.

What is the travel speed of the Caterpillar M315D wheel excavator?

The Caterpillar M315D wheel excavator has a travel speed of 34 km/h.

What is the fuel consumption range of the Caterpillar M315D wheel excavator?

The Caterpillar M315D wheel excavator has a fuel consumption range of 11 to 20 liters per hour.

What are the undercarriage specifications of the Caterpillar M315D wheel excavator?

The Caterpillar M315D wheel excavator is equipped with standard tyres sized 10.00-20 16PR.

What is the turning radius of the Caterpillar M315D wheel excavator?

The Caterpillar M315D wheel excavator has an outside turning radius of 8.3 meters.

What are the excavation performance specifications of the Caterpillar M315D wheel excavator?

The Caterpillar M315D wheel excavator has a dredging depth of 5.89 meters, a maximum horizontal reach of 9.17 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar M315D?

The Caterpillar M315D has a tear-out force of 101 kN.

What are the bucket specifications of the Caterpillar M315D wheel excavator?

The Caterpillar M315D wheel excavator has a bucket width of 1.4 meters, with a maximum capacity of 1.12 cubic meters and a minimum capacity of 0.34 cubic meters.

How much is a Caterpillar M315D Wheel excavator (2007u20132021) worth?

The residual value of the Caterpillar M315D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
