214B FT Caterpillar Excavator Specs & Dimensions - (1988 - 2021)

Weight: 16.445t – Standard tyres: 10.00-20/11.00-20 – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.98m³ – Boom: MB – Out…

Weight: 16.445t – Standard tyres: 10.00-20/11.00-20 – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.98m³ – Boom: MB – Outrigger stabilisers: 22/4-fold

Check out detailed dimensions, specifications, information and technical data for Caterpillar 214B FT excavator manufactured between 1988 - 2021. Get more in-depth insight with Caterpillar 214B FT digger specifications. See information, like: Weight: 16.445t – Standard tyres: 10.00-20/11.00-20 – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.98m³ – Boom: MB – Outrigger stabilisers: 22/4-fold and more.

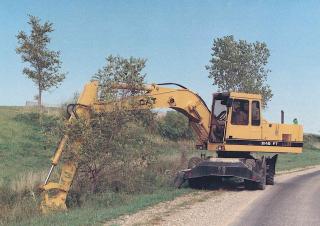

Wheel Excavators Caterpillar 214B FT
Wheel Excavators Caterpillar 214B FT
Wheel Excavators Caterpillar 214B FT
Wheel Excavators Caterpillar 214B FT

Technical specs - 214B FT Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.445 t
Standard tyres
10.00-20/11.00-20
Bucket capacity min.
0.45 m³
Bucket capacity max.
0.98 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
8.32 m
Transport width
2.47 m
Transport height
3.9 m
Max. Reach horizontal
9.4 m
Dredging depth
6 m
Tear-out force
126 kN
Bucket width
1.21 m
Turning radius outside
12.4 m
Travel speed
32 km/h
Model series
FT
Engine manuf.
Caterpillar
Engine type
3116
Engine power
101 kW
Displacement
6.6 l
No. of cylinders
6
Cylinder bore x stroke
105x127 mm

More technical details, like: bucket capacity, dipper length, turning radius inside, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 214B FT FAQ

When was the Caterpillar 214B FT manufactured?

The Caterpillar 214B FT was manufactured from 1988 to 2021.

How much does the Caterpillar 214B FT wheel excavator weigh?

The Caterpillar 214B FT wheel excavator weighs 16.45 tons.

What are the transport dimensions of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT has a transport length of 8.32 meters, a transport width of 2.47 meters, and a transport height of 3.9 meters.

What is the travel speed of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT wheel excavator has a travel speed of 32 km/h.

What are the undercarriage specifications of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT has standard tyres sized 10.00-20/11.00-20 and is equipped with 2 outrigger stabilisers.

What is the outside turning radius of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT has an outside turning radius of 12.4 meters.

What are the excavation performance specifications of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT wheel excavator has a dredging depth of 6 meters, a maximum horizontal reach of 9.4 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT wheel excavator has a tear-out force of 126 kN.

What are the bucket specifications of the Caterpillar 214B FT wheel excavator?

The Caterpillar 214B FT wheel excavator has a bucket width of 1.21 meters, with a maximum capacity of 0.98 cubic meters and a minimum capacity of 0.45 cubic meters.
