214 Caterpillar Excavator Specs & Dimensions - (1985 - 2021)

Weight: 16.6t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.25m³ – Bucket capacity max.: 0.86m³ – Boom: MB – Transport leng…

Weight: 16.6t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.25m³ – Bucket capacity max.: 0.86m³ – Boom: MB – Transport length: 8.3m

Check out detailed dimensions, specifications, information and technical data for Caterpillar 214 excavator manufactured between 1985 - 2021. Get more in-depth insight with Caterpillar 214 digger specifications. See information, like: Weight: 16.6t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.25m³ – Bucket capacity max.: 0.86m³ – Boom: MB – Transport length: 8.3m and more.

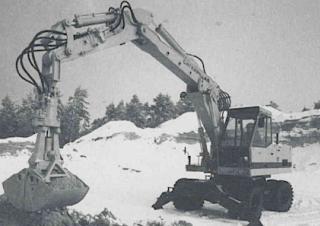

Wheel Excavators Caterpillar 214

Technical specs - 214 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.6 t
Standard tyres
10.00-20
Bucket capacity min.
0.25 m³
Bucket capacity max.
0.86 m³
Boom
MB
Transport length
8.3 m
Transport width
2.47 m
Transport height
3.3 m
Max. Reach horizontal
10.3 m
Dredging depth
7.2 m
Tear-out force
108 kN
Bucket width
1.41 m
Turning radius outside
13.3 m
Travel speed
20 km/h
Engine manuf.
Perkins
Engine type
6.354.4P
Engine power
76 kW
Displacement
5.8 l
No. of cylinders
6
Cylinder bore x stroke
98.4x127 mm

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 214 FAQ

When was the Caterpillar 214 wheel excavator manufactured?

The Caterpillar 214 wheel excavator was manufactured from 1985 to 2021.

How much does the Caterpillar 214 wheel excavator weigh?

The Caterpillar 214 wheel excavator weighs 16.6 tons.

What are the transport dimensions of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has a transport length of 8.3 meters, a transport width of 2.47 meters, and a transport height of 3.3 meters.

What is the travel speed of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has a travel speed of 20 km/h.

What is the standard tyre size of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has standard tyres of size 10.00-20.

What is the turning radius of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has an outside turning radius of 13.3 meters.

What are the excavation performance specifications of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has a dredging depth of 7.2 meters, a maximum horizontal reach of 10.3 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has a tear-out force of 108 kN.

What are the bucket specifications of the Caterpillar 214 wheel excavator?

The Caterpillar 214 wheel excavator has a bucket width of 1.41 meters, with a maximum capacity of 0.86 cubic meters and a minimum capacity of 0.25 cubic meters.

How much is a Caterpillar 214 Wheel excavator (1985u20132021) worth?

The residual value of the Caterpillar 214 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
