WX168 Case Excavator Specs & Dimensions - (2013 - 2019)

case is the manufacturer of the wheel excavator model WX 168. Find and download detailed specs and data sheets for this machine he…

case is the manufacturer of the wheel excavator model WX 168. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful FPT engine, this WX 168 17.6t machine can provide 105kW or 140 horse power for the wheel excavator. This case wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.2m x 2.53m x 3.2m. The bucket capacity of WX 168 is 0.63m³, which is above average for this type of machine.

The WX 168 is manufactured and distributed with Blade, Aircondition and Overload alert. It has been sold without air Cabin adjustment, Diesel particulate filter and Material Handling Excavator as of 2017. There are more detailed specifications and machine descriptions available in the original case WX 168 specs data sheet. Specification sheet is available for a free download in Italian, German, French, Spanish and English - providing the machine descriptions and more detailed specs about this particular model.

The production is still going in 2017, where this WX 168 is available at a new list price between €198000 and €252000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed case models of this type on LECTURA Specs are the WX 218, WX 188 and WX 148, and 3 other wheel excavators, which currently range from 15.4t up to 20.8t are also available. Ranked in the LECTURA index at #48, this WX 168 wheel excavator has models that date from 2013 to 2017. Want more detailed specifications? Download the latest case WX 168 specs data sheet on LECTURA Specs today!

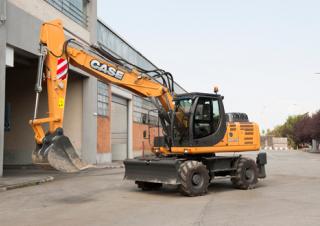

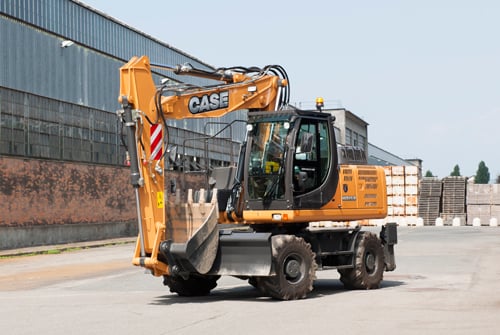

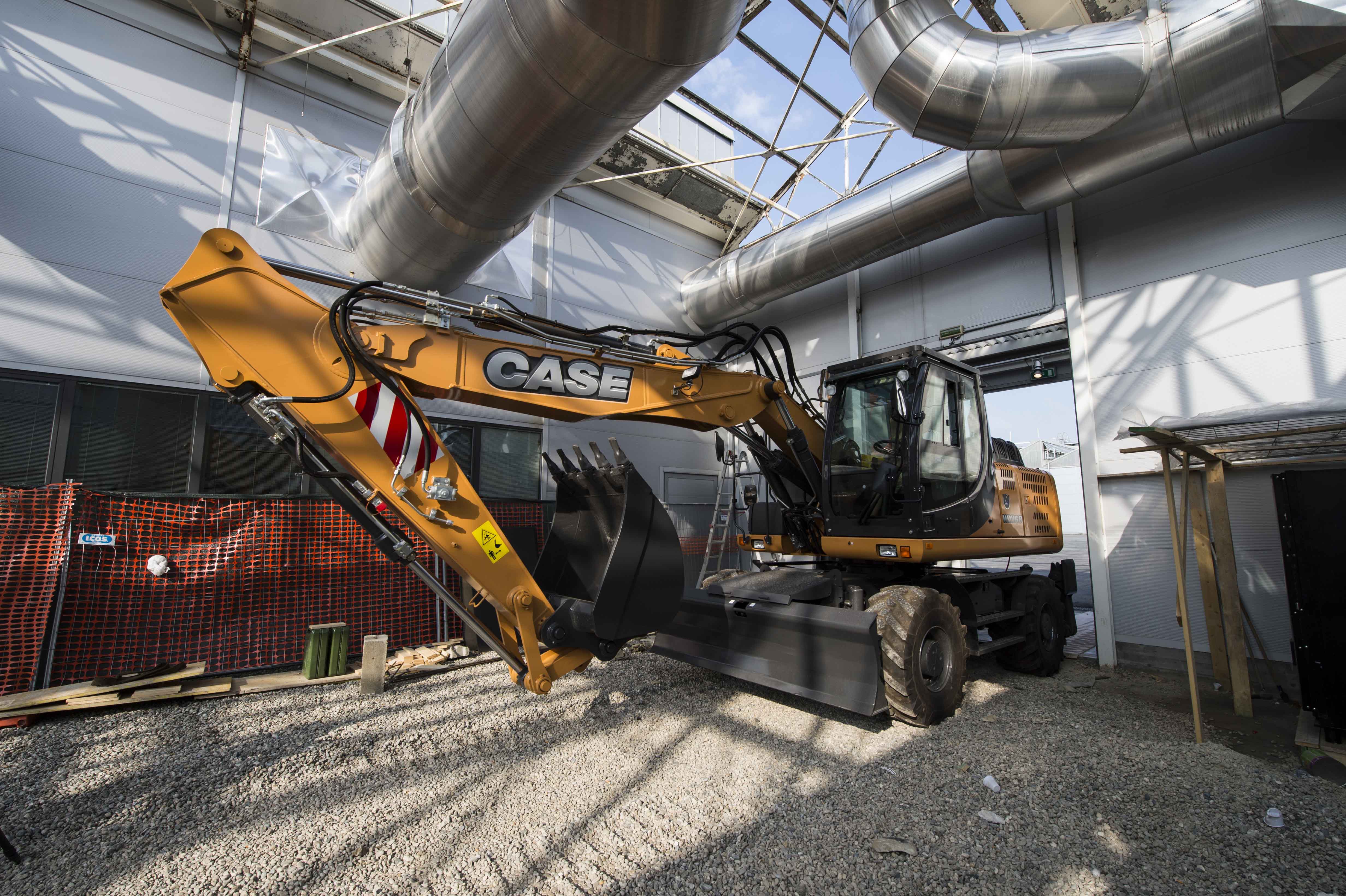

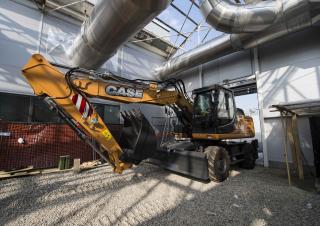

Wheel Excavators Case WX168
Wheel Excavators Case WX168
Wheel Excavators Case WX168
Wheel Excavators Case WX168
Wheel Excavators Case WX168
Wheel Excavators Case WX168

Technical specs - WX168 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.37 t
Standard tyres
10.0-20
Bucket capacity
0.63 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.635 m
Transport width
2.55 m
Transport height
3.181 m
Max. Reach horizontal
9.43 m
Dredging depth
5.84 m
Tear-out force
113 kN
Bucket width
0.9 m
Travel speed
35 km/h
Engine manuf.
FPT
Engine type
667 TA
Engine power
105 kW
Displacement
6.7 l
Revolutions at max torque
1200 rpm
Max. torque
575 Nm
No. of cylinders
6
Cylinder bore x stroke
104 x 132 mm
Emission level
Stage III / Tier 3

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX168 FAQ

When was the Case WX168 manufactured?

The Case WX168 was manufactured from 2013 to 2019.

How much does the Case WX168 wheel excavator weigh?

The Case WX168 wheel excavator weighs 17.37 tons.

What are the transport dimensions of the Case WX168 wheel excavator?

The Case WX168 has a transport length of 8.64 meters, a transport width of 2.55 meters, and a transport height of 3.18 meters.

What is the travel speed of the Case WX168 wheel excavator?

The Case WX168 wheel excavator has a travel speed of 35 km/h.

What are the undercarriage specifications of the Case WX168 wheel excavator?

The Case WX168 wheel excavator has standard tyres sized 10.0-20 and is equipped with 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX168 wheel excavator?

The Case WX168 wheel excavator has an adjustable boom, a dredging depth of 5.84 meters, and a maximum horizontal reach of 9.43 meters.

What is the tear-out force of the Case WX168 wheel excavator?

The Case WX168 wheel excavator has a tear-out force of 113 kN.

What are the bucket specifications of the Case WX168 wheel excavator?

The Case WX168 wheel excavator has a bucket capacity of 0.63 cubic meters and a bucket width of 0.9 meters.

How much is a Case WX168 Wheel excavator (2013u20132019) worth?

The residual value of the Case WX168 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
