WX155E SR Case Excavator Specs & Dimensions - (2022 - 2026)

Weight: 16.87t – Standard tyres: 10.00-20 – Bucket capacity: 0.58m³ – Bucket capacity min.: 0.21m³ – Bucket capacity max.: 0.8m³ –…

Weight: 16.87t – Standard tyres: 10.00-20 – Bucket capacity: 0.58m³ – Bucket capacity min.: 0.21m³ – Bucket capacity max.: 0.8m³ – Boom: MB

Check out detailed dimensions, specifications, information and technical data for Case WX155E SR excavator manufactured between 2022 - 2026. Get more in-depth insight with Case WX155E SR digger specifications. See information, like: Weight: 16.87t – Standard tyres: 10.00-20 – Bucket capacity: 0.58m³ – Bucket capacity min.: 0.21m³ – Bucket capacity max.: 0.8m³ – Boom: MB and more.

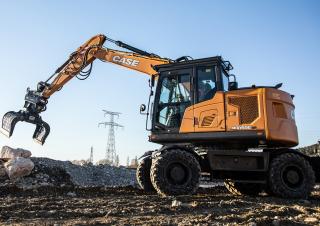

Wheel Excavators Case WX155E SR

Technical specs - WX155E SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.87 t
Standard tyres
10.00-20
Bucket capacity
0.58 m³
Bucket capacity min.
0.21 m³
Bucket capacity max.
0.8 m³
Boom
MB
Outrigger stabilisers
2/4 2/4-fold
Transport length
7.36 m
Transport width
2.53 m
Transport height
3.23 m
Max. Reach horizontal
8.37 m
Dredging depth
5.13 m
Tear-out force
112 kN
Dipper length
2.45 m
Turning radius inside
6.3 m
Travel speed
35 km/h
Model series
E
Engine manuf.
Cummins
Engine type
B4.5
Engine power
127 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
780 Nm
No. of cylinders
4
Cylinder bore x stroke
107x124 mm
Emission level
EU V

More technical details, like: bucket width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Case WX155E SR FAQ

When was the Case WX155E SR manufactured?

The Case WX155E SR was first produced in 2022.

How much does the Case WX155E SR wheel excavator weigh?

The Case WX155E SR wheel excavator weighs 16.87 tons.

What are the transport dimensions of the Case WX155E SR wheel excavator?

The Case WX155E SR has a transport length of 7.36 meters, a transport width of 2.53 meters, and a transport height of 3.23 meters.

What is the travel speed of the Case WX155E SR wheel excavator?

The Case WX155E SR has a travel speed of 35 km/h.

What are the undercarriage specifications of the Case WX155E SR wheel excavator?

The Case WX155E SR wheel excavator is equipped with 10.00-20 standard tyres and features 2/4-fold outrigger stabilisers.

What is the turning radius inside of the Case WX155E SR wheel excavator?

The Case WX155E SR has an inside turning radius of 6.3 meters.

What are the excavation performance specifications of the Case WX155E SR wheel excavator?

The Case WX155E SR has a dredging depth of 5.13 meters, a maximum horizontal reach of 8.37 meters, features a monobloc boom, and has a dipper length of 2.45 meters.

What is the tear-out force of the Case WX155E SR wheel excavator?

The Case WX155E SR wheel excavator has a tear-out force of 112 kN.

What are the bucket capacity specifications of the Case WX155E SR wheel excavator?

The Case WX155E SR wheel excavator has a bucket capacity of 0.58 mu00b3, with a maximum capacity of 0.8 mu00b3 and a minimum capacity of 0.21 mu00b3.

How much is a Case WX155E SR Wheel excavator (2022u20132025) worth?

The residual value of the Case WX155E SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
