WX148 Case Excavator Specs & Dimensions - (2013 - 2019)

Model rating
6,00 / 10

case is the manufacturer of the wheel excavator model WX 148. Find and download detailed specs and data sheets for this machine he…

case is the manufacturer of the wheel excavator model WX 148. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful FPT engine, this WX 148 15.4t machine can provide 90kW or 120 horse power for the wheel excavator. The case WX 148 can be grouped in the medium sized machine segment in the wheel excavators category. The model's dimensions are 7.8m x 2.53m x 3.2m. The bucket capacity of WX 148 is 0.55m³, which is above average for this type of machine.

Since 2013, this model has included Blade, Aircondition and Overload alert. It does not include Diesel particulate filter, Quick hitch hydr. And Cabin adjustment. There are more detailed specifications and machine descriptions available in the original case WX 148 specs data sheet. Download a free data sheet in French, English, German, Spanish and Italian from LECTURA Specs.

The production is still going in 2017, where this WX 148 is available at a new list price between €184000 and €234000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 3 other wheel excavators, which range from 17.6t up to 20.8t - the most visited on LECTURA Specs are WX 188, WX 168, WX 218. Ranked in the LECTURA index at #27, this WX 148 wheel excavator has models that date from 2013 to 2017. Want more detailed specifications? Download the latest case WX 148 specs data sheet on LECTURA Specs today!

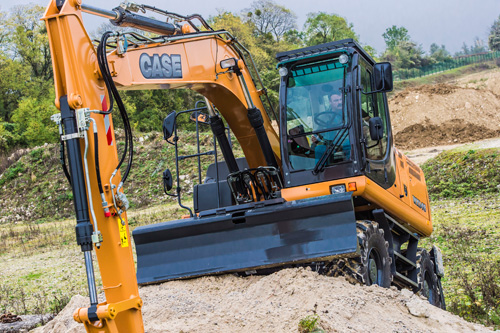

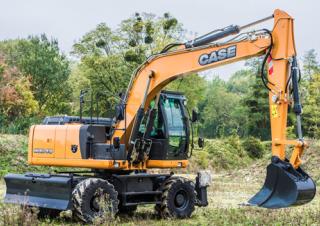

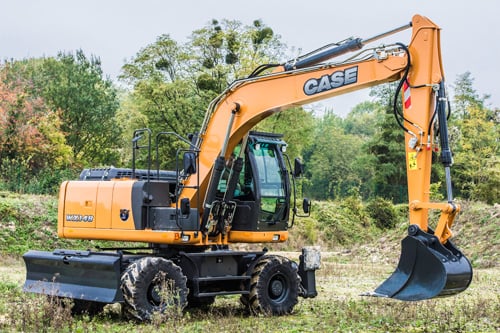

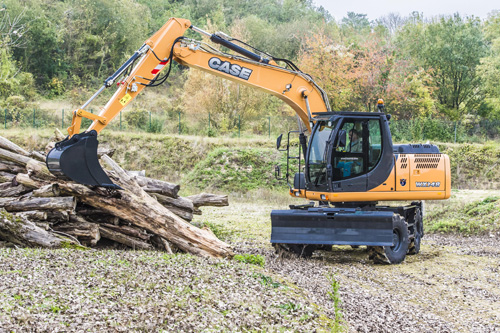

Wheel Excavators Case WX148
Wheel Excavators Case WX148
Wheel Excavators Case WX148
Wheel Excavators Case WX148
Wheel Excavators Case WX148
Wheel Excavators Case WX148

Technical specs - WX148 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.55 t
Standard tyres
10.0-20
Bucket capacity
0.55 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.065 m
Transport width
2.55 m
Transport height
3.185 m
Max. Reach horizontal
8.3 m
Dredging depth
4.9 m
Tear-out force
91.3 kN
Bucket width
0.9 m
Dipper length
2.2 m
Travel speed
35 km/h
Engine manuf.
FPT
Engine type
445 TA
Engine power
90 kW
Displacement
4.5 l
Revolutions at max torque
1200 rpm
Max. torque
525 Nm
No. of cylinders
4
Cylinder bore x stroke
104 x 132 mm
Emission level
Stage III / Tier 3

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer, engine model...

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX148 FAQ

When was the Case WX148 manufactured?

The Case WX148 was manufactured from 2013 to 2019.

How much does the Case WX148 wheel excavator weigh?

The Case WX148 wheel excavator weighs 15.55 tons.

What are the transport dimensions of the Case WX148 wheel excavator?

The Case WX148 has a transport length of 8.07 meters, a transport width of 2.55 meters, and a transport height of 3.19 meters.

What is the travel speed of the Case WX148 wheel excavator?

The Case WX148 wheel excavator has a travel speed of 35 km/h.

What are the undercarriage specifications of the Case WX148 wheel excavator?

The Case WX148 wheel excavator comes with standard tyres sized 10.0-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX148 wheel excavator?

The Case WX148 wheel excavator has a dredging depth of 4.9 meters, a maximum horizontal reach of 8.3 meters, features an adjustable boom, and has a dipper length of 2.2 meters.

What power ratings are available for the Case WX148 wheel excavator?

The source data does not provide any power ratings for the Case WX148 wheel excavator. The only related specification available is a tear-out force of 91.3 kN, which is a measure of force, not power.

What are the bucket specifications of the Case WX148 wheel excavator?

The Case WX148 wheel excavator has a bucket capacity of 0.55 cubic meters and a bucket width of 0.9 meters.
