WX 210 Case Excavator Specs & Dimensions - (2004 - 2008)

Model rating
10,00 / 10

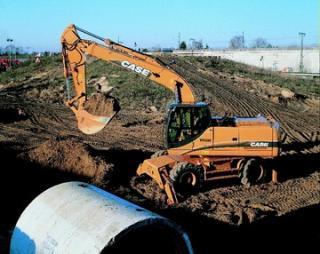

Manufactured by case, this is the WX 210 wheel excavator. Find and download detailed specs and data sheets for this machine here. …

Manufactured by case, this is the WX 210 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The case WX 210 is a 19.72t machine with case engine which powers this model with up to 129kW or 172 horse power. The case WX 210 can be grouped in the biggest machine segment in the wheel excavators category. The WX 210’s size is 1.91m x 9.43m x 3.15m. The bucket capacity of WX 210 is 0,95m³, which is above average for this type of machine.

It does not include Diesel particulate filter, Aircondition and Blade. There are more detailed specifications and machine descriptions available in the original case WX 210 specs data sheet. Download a free data sheet in Chinese, French and German from LECTURA Specs.

This model can be acquired for a list price between €190000 and €242000. Production of the WX 210 stopped in 2008. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 148, WX 188, WX 168. Want more detailed specifications? Download the latest case WX 210 specs data sheet on LECTURA Specs today!

Wheel Excavators Case WX 210

Technical specs - WX 210 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.72 t
Standard tyres
10.00x20
Bucket capacity
0.95 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
9.43 m
Transport width
1.91 m
Transport height
3.15 m
Max. Reach horizontal
10.15 m
Dredging depth
6.23 m
Tear-out force
150 kN
Bucket width
1.2 m
Engine manuf.
Case
Engine type
659TA-M2
Engine power
129 kW
Displacement
5.9 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX 210 FAQ

When was the Case WX 210 manufactured?

The Case WX 210 was manufactured from 2004 to 2008.

How much does the Case WX 210 wheel excavator weigh?

The Case WX 210 wheel excavator weighs 19.72 tons.

What are the transport dimensions of the Case WX 210 wheel excavator?

The Case WX 210 has a transport length of 9.43 meters, a transport width of 1.91 meters, and a transport height of 3.15 meters.

What are the undercarriage specifications of the Case WX 210 wheel excavator?

The Case WX 210 wheel excavator comes with standard tyres sized 10.00x20 and features 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX 210 wheel excavator?

The Case WX 210 has an adjustable boom, a maximum horizontal reach of 10.15 meters, and a dredging depth of 6.23 meters.

What are the power ratings of the Case WX 210 wheel excavator?

There is no power rating information available for the Case WX 210 wheel excavator in the provided data.

What are the bucket specifications of the Case WX 210 wheel excavator?

The Case WX 210 wheel excavator has a bucket capacity of 0.95 cubic meters and a bucket width of 1.2 meters.

How much is a Case WX 210 Wheel excavator (2004u20132008) worth?

The residual value of the Case WX 210 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
