WX 185 Case Excavator Specs & Dimensions - (2004 - 2008)

Manufactured by case, this is the WX 185 wheel excavator. Find and download detailed specs and data sheets for this machine here. …

Manufactured by case, this is the WX 185 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The case WX 185 is a 18.74t machine with case engine which powers this model with up to 118kW or 158 horse power. The WX 185 is categorised in the biggest machine segment in the wheel excavators category. The model's dimensions are 8.69m x 2.45m x 3.001m. The bucket of WX 185 has a capacity of 0,85m³ which is average for this type of machine.

The WX 185 is manufactured and distributed with Aircondition. It does not include Diesel particulate filter, Overload alert and Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original case WX 185 specs data sheet. Specification sheet is available for a free download in English, Chinese and German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 2008, where this WX 185 was available at a new list price between €164000 and €209000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 148, WX 188, WX 168. Want more detailed specifications? Download the latest case WX 185 specs data sheet on LECTURA Specs today!

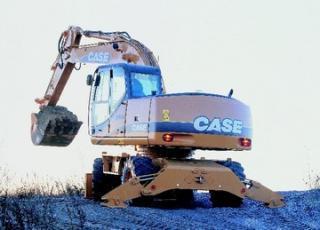

Wheel Excavators Case WX 185

Technical specs - WX 185 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.74 t
Standard tyres
10.00-20
Bucket capacity
0.85 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.69 m
Transport width
2.45 m
Transport height
3.001 m
Max. Reach horizontal
9.46 m
Dredging depth
5.9 m
Tear-out force
135 kN
Bucket width
1.1 m
Engine manuf.
Case
Engine type
659TA-M2
Engine power
118 kW
Displacement
5.9 l
Revolutions at max torque
2150 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX 185 FAQ

When was the Case WX 185 manufactured?

The Case WX 185 was manufactured from 2004 to 2008.

How much does the Case WX 185 wheel excavator weigh?

The Case WX 185 wheel excavator weighs 18.74 tons.

What are the transport dimensions of the Case WX 185 wheel excavator?

The Case WX 185 has a transport length of 8.69 meters, a transport width of 2.45 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Case WX 185 wheel excavator?

The Case WX 185 wheel excavator is equipped with standard tyres sized 10.00-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX 185 wheel excavator?

The Case WX 185 wheel excavator has a dredging depth of 5.9 meters, a maximum horizontal reach of 9.46 meters, and features an adjustable boom.

What is the tear-out force, a power-related rating, of the Case WX 185 wheel excavator?

The Case WX 185 wheel excavator has a tear-out force of 135 kN.

What are the bucket specifications of the Case WX 185 wheel excavator?

The Case WX 185 has a bucket with a capacity of 0.85 cubic meters and a width of 1.1 meters.

How much is a Case WX 185 Wheel excavator (2004u20132008) worth?

The residual value of the Case WX 185 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
