WX 170 Case Excavator Specs & Dimensions - (2003 - 2004)

Model rating
6,00 / 10

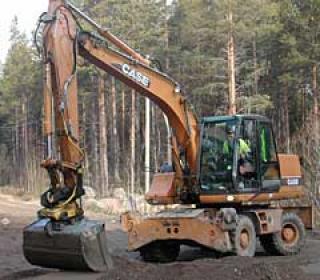

Manufactured by case, this is the WX 170 wheel excavator. Find and download detailed specs and data sheets for this machine here. …

Manufactured by case, this is the WX 170 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 105kW or 140 horse power, delivered from its powerful case engine to the 15.8t WX 170 machine. This case wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The WX 170’s size is 2.51m x 8.55m x 3.24m. The bucket of WX 170 has a capacity of 0,88m³ which is average for this type of machine.

Since 2003, this model has included Blade and Overload alert. It does not include Cabin adjustment, Quick hitch mech. And Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original case WX 170 specs data sheet. Available in German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €142000 and €180000. Production of the WX 170 stopped in 2004. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 168, WX 188, WX 148. Want more detailed specifications? Download the latest case WX 170 specs data sheet on LECTURA Specs today!

Wheel Excavators Case WX 170

Technical specs - WX 170 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.8 t
Standard tyres
10.00-20
Bucket capacity
0.88 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.55 m
Transport width
2.51 m
Transport height
3.24 m
Max. Reach horizontal
9.70 m
Dredging depth
5.95 m
Tear-out force
67 kN
Bucket width
1.08 m
Engine manuf.
Case
Engine type
659TA-M2
Engine power
105 kW
Displacement
5.9 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX 170 FAQ

When was the Case WX 170 manufactured?

The Case WX 170 was manufactured from 2003 to 2004.

How much does the Case WX 170 wheel excavator weigh?

The Case WX 170 wheel excavator weighs 15.8 tons.

What are the transport dimensions of the Case WX 170 wheel excavator?

The Case WX 170 has a transport length of 8.55 meters, a transport width of 2.51 meters, and a transport height of 3.24 meters.

What are the undercarriage specifications of the Case WX 170 wheel excavator?

The Case WX 170 is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX 170 wheel excavator?

The Case WX 170 has an adjustable boom, a dredging depth of 5.95 meters, and a maximum horizontal reach of 9.7 meters.

What is the tear-out force of the Case WX 170 wheel excavator?

The Case WX 170 wheel excavator has a tear-out force of 67 kN. No power rating data is available for this model in the provided source.

What are the bucket specifications of the Case WX 170 wheel excavator?

The Case WX 170 wheel excavator has a bucket capacity of 0.88 cubic meters and a bucket width of 1.08 meters.

How much is a Case WX 170 Wheel excavator (2003u20132004) worth?

The residual value of the Case WX 170 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
