1085 Case Excavator Specs & Dimensions - (1983 - 1987)

Weight: 16.828t – Standard tyres: 17 .5 x 25 L2 – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 1.14m³ – Transport length: …

Weight: 16.828t – Standard tyres: 17 .5 x 25 L2 – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 1.14m³ – Transport length: 2.77m – Transport width: 1.98m

Check out detailed dimensions, specifications, information and technical data for Case 1085 excavator manufactured between 1983 - 1987. Get more in-depth insight with Case 1085 digger specifications. See information, like: Weight: 16.828t – Standard tyres: 17 .5 x 25 L2 – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 1.14m³ – Transport length: 2.77m – Transport width: 1.98m and more.

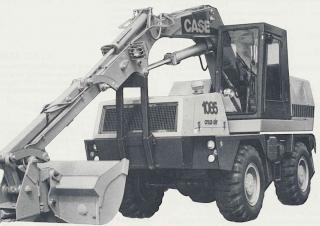

Wheel Excavators Case 1085

Technical specs - 1085 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.828 t
Standard tyres
17 .5 x 25 L2
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.14 m³
Transport length
2.77 m
Transport width
1.98 m
Transport height
3.96 m
Max. Reach horizontal
9.09 m
Dredging depth
5.99 m
Turning radius inside
6.93 m
Turning radius outside
9.65 m
Travel speed
48.3 km/h
Engine manuf.
Detroit
Engine type
4-53N
Engine power
92 kW
Displacement
3.47 l
Max. torque
382 Nm
No. of cylinders
4
Cylinder bore x stroke
98x114 mm

More technical details, like: bucket capacity, boom, outrigger stabilisers, tear-out force, bucket width, dipper length, model series, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 1085 FAQ

When was the Case 1085 wheel excavator manufactured?

The Case 1085 wheel excavator was manufactured from 1983 to 1987.

How much does the Case 1085 wheel excavator weigh?

The Case 1085 wheel excavator weighs 16.83 tons.

What are the transport dimensions of the Case 1085 wheel excavator?

The Case 1085 wheel excavator has a transport length of 2.77 meters, a transport width of 1.98 meters, and a transport height of 3.96 meters.

What is the travel speed of the Case 1085 wheel excavator?

The Case 1085 wheel excavator has a travel speed of 48.3 km/h.

What are the undercarriage specifications of the Case 1085?

The Case 1085 wheel excavator is equipped with standard tyres sized 17.5 x 25 L2.

What are the outside and inside turning radii of the Case 1085 wheel excavator?

The Case 1085 wheel excavator has an outside turning radius of 9.65 meters and an inside turning radius of 6.93 meters.

What are the excavation performance specifications of the Case 1085 wheel excavator?

The Case 1085 wheel excavator has a dredging depth of 5.99 meters and a maximum horizontal reach of 9.09 meters.

What are the bucket capacity specifications of the Case 1085 wheel excavator?

The Case 1085 wheel excavator has a bucket capacity ranging from 0.38 to 1.14 cubic meters.
