988 P2A Case Poclain Excavator Specs & Dimensions - (1996 - 1999)

Case Poclain is the manufacturer of the wheel excavator model 988 P2A. Find and download detailed specs and data sheets for this m…

Case Poclain is the manufacturer of the wheel excavator model 988 P2A. Find and download detailed specs and data sheets for this machine here.

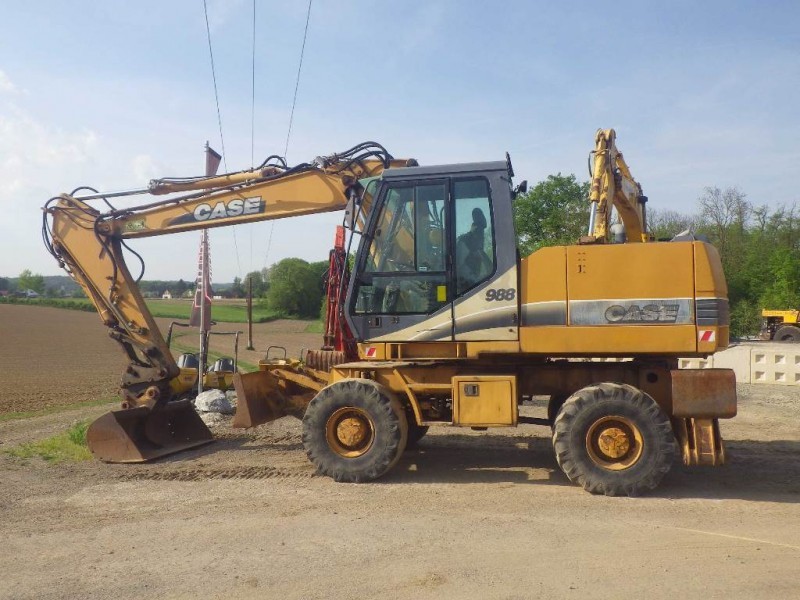

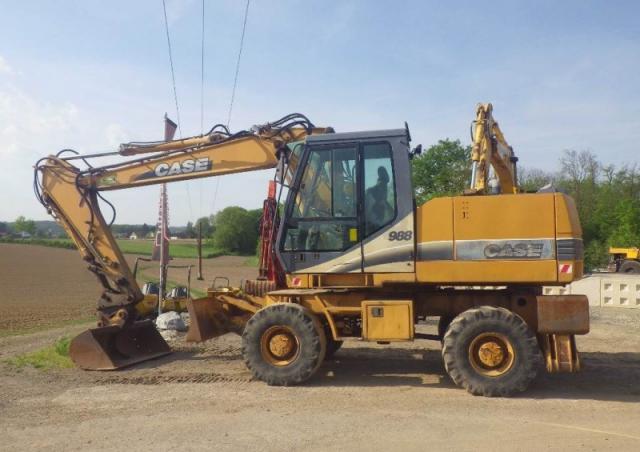

The Case Poclain 988 P2A is a 15.6t machine with case engine which powers this model with up to 86kW or 115 horse power. The Case Poclain 988 P2A can be grouped in the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.6m x 2.49m x 3.24m. The bucket of 988 P2A has a capacity of 1,15m³ which is average for this type of machine.

Material Handling Excavator, Diesel particulate filter and Blade are not provided on this model as of 1999. There are more detailed specifications and machine descriptions available in the original Case Poclain 988 P2A specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €125000 and €159000. Production of the 988 P2A stopped in 1999. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case Poclain currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Case Poclain 988 P2A specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 988 P2A

Technical specs - 988 P2A Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.6 t
Standard tyres
10.00-20
Bucket capacity
1.15 m³
Transport length
8.6 m
Transport width
2.49 m
Transport height
3.24 m
Model series
P
Engine manuf.
Case
Engine type
6T 590
Engine power
86 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 988 P2A FAQ

When was the Case Poclain 988 P2A manufactured?

The Case Poclain 988 P2A was manufactured from 1996 to 1999.

How much does the Case Poclain 988 P2A weigh?

The Case Poclain 988 P2A weighs 15.6 tons.

What are the transport dimensions of the Case Poclain 988 P2A wheel excavator?

The Case Poclain 988 P2A has a transport length of 8.6 meters, a transport width of 2.49 meters, and a transport height of 3.24 meters.

What are the standard tyre specifications of the Case Poclain 988 P2A?

The Case Poclain 988 P2A has standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 988 P2A wheel excavator?

The Case Poclain 988 P2A has a bucket capacity of 1.15 cubic meters.

How much is a Case Poclain 988 P2A Wheel excavator (1996u20131999) worth?

The residual value of the Case Poclain 988 P2A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
