988 P Plus Case Poclain Excavator Specs & Dimensions - (1996 - 1999)

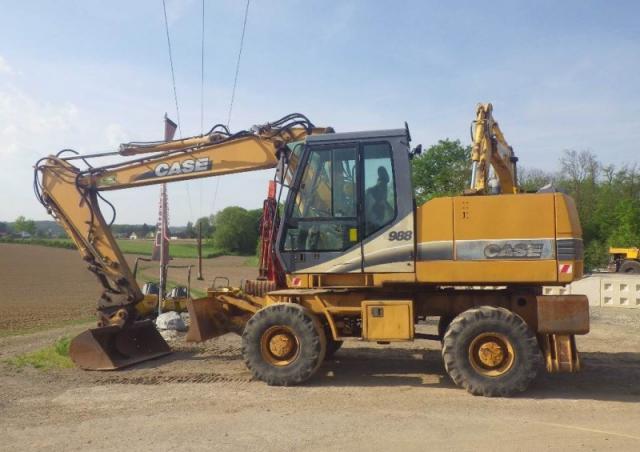

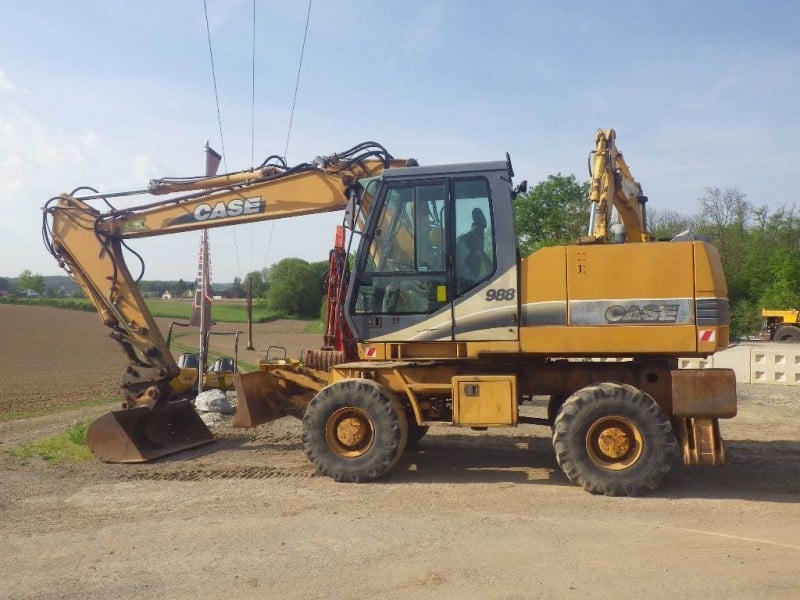

Manufactured by Case Poclain, this is the 988 P Plus wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Case Poclain, this is the 988 P Plus wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 86kW or 115 horse power, delivered from its powerful case engine to the 15t 988 P Plus machine. This Case Poclain wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 9.05m x 2.49m x 3.26m. The bucket of 988 P Plus has a capacity of 1,15m³ which is average for this type of machine.

Quick hitch mech., Aircondition and Diesel particulate filter are not provided on this model as of 1999. There are more detailed specifications and machine descriptions available in the original Case Poclain 988 P Plus specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €118000 and €151000. Production of the 988 P Plus stopped in 1999. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 988 P Plus specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 988 P Plus

Technical specs - 988 P Plus Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Standard tyres
11.00-20
Bucket capacity
1.15 m³
Transport length
9.05 m
Transport width
2.49 m
Transport height
3.26 m
Model series
P
Engine manuf.
Case
Engine type
6T 590
Engine power
86 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 988 P Plus FAQ

When was the Case Poclain 988 P Plus manufactured?

The Case Poclain 988 P Plus was manufactured from 1996 to 1999.

How much does the Case Poclain 988 P Plus weigh?

The Case Poclain 988 P Plus weighs 15 tons.

What are the transport dimensions of the Case Poclain 988 P Plus wheel excavator?

The Case Poclain 988 P Plus has a transport length of 9.05 meters, a width of 2.49 meters, and a height of 3.26 meters.

What are the undercarriage specifications of the Case Poclain 988 P Plus?

The Case Poclain 988 P Plus is equipped with standard tyres sized 11.00-20.

What is the bucket capacity of the Case Poclain 988 P Plus wheel excavator?

The Case Poclain 988 P Plus has a bucket capacity of 1.15 cubic meters.

How much is a Case Poclain 988 P Plus Wheel excavator (1996u20131999) worth?

The residual value of the Case Poclain 988 P Plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
