888 PL Case Poclain Excavator Specs & Dimensions - (1989 - 1993)

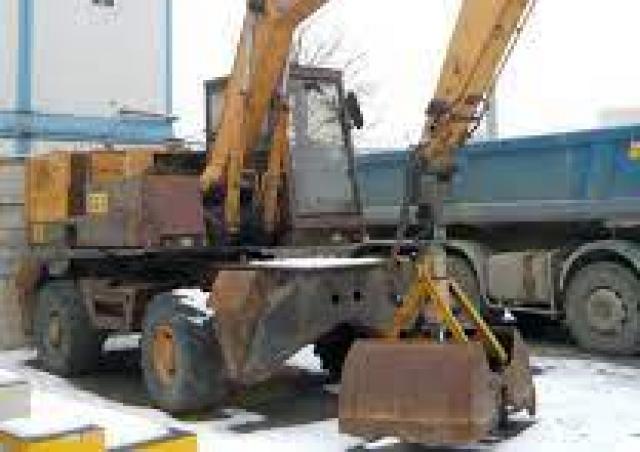

Manufactured by Case Poclain, this is the 888 PL wheel excavator. Find and download detailed specs and data sheets for this machin…

Manufactured by Case Poclain, this is the 888 PL wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful case engine, this 888 PL 15.5t machine can provide 87.5kW or 117 horse power for the wheel excavator. The 888 PL is categorised in the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.9m x 2.46m x 3.16m. The bucket capacity of 888 PL is 1m³, which is above average for this type of machine.

It has been sold without air Cabin adjustment, Diesel particulate filter and Quick hitch hydr. As of 1993. There are more detailed specifications and machine descriptions available in the original Case Poclain 888 PL specs data sheet.

This model can be acquired for a list price between €163000 and €207000. Production of the 888 PL stopped in 1993. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Case Poclain. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Case Poclain 888 PL specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 888 PL

Technical specs - 888 PL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.5 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Transport length
8.9 m
Transport width
2.46 m
Transport height
3.16 m
Model series
PL
Engine manuf.
Case
Engine type
6T 590
Engine power
87.5 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 888 PL FAQ

When was the Case Poclain 888 PL manufactured?

The Case Poclain 888 PL was manufactured from 1989 to 1993.

How much does the Case Poclain 888 PL weigh?

The Case Poclain 888 PL weighs 15.5 tons.

What are the transport dimensions of the Case Poclain 888 PL wheel excavator?

The Case Poclain 888 PL has transport dimensions of 8.9 meters in length, 2.46 meters in width, and 3.16 meters in height.

What are the standard tyre specifications of the Case Poclain 888 PL?

The Case Poclain 888 PL is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 888 PL wheel excavator?

The Case Poclain 888 PL wheel excavator has a bucket capacity of 1 cubic meter.

How much is a Case Poclain 888 PL Wheel excavator (1989u20131993) worth?

The residual value of the Case Poclain 888 PL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
