888 B PL Case Poclain Excavator Specs & Dimensions - (1993 - 1995)

The 888 B PL wheel excavator model is manufactured by Case Poclain. Find and download detailed specs and data sheets for this mach…

The 888 B PL wheel excavator model is manufactured by Case Poclain. Find and download detailed specs and data sheets for this machine here.

The Case Poclain 888 B PL is a 15.5t machine with case engine which powers this model with up to 87.5kW or 117 horse power. This Case Poclain wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The 888 B PL’s size is 2.49m x 8.6m x 3.24m. The bucket capacity of 888 B PL is 1m³, which is above average for this type of machine.

It has been sold without air Track guidance, Cabin adjustment and Blade as of 1995. There are more detailed specifications and machine descriptions available in the original Case Poclain 888 B PL specs data sheet. Download a free data sheet in German from LECTURA Specs.

The production stopped in 1995, where this 888 B PL was available at a new list price between €153000 and €195000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case Poclain currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Case Poclain 888 B PL specs data sheet on LECTURA Specs today!

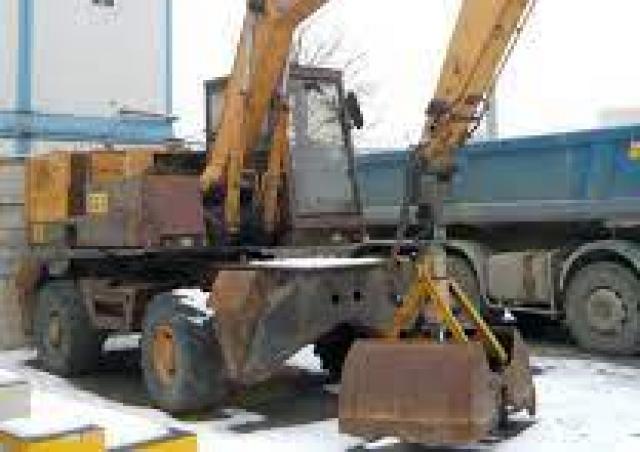

Wheel Excavators Case Poclain 888 B PL

Technical specs - 888 B PL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.5 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Transport length
8.6 m
Transport width
2.49 m
Transport height
3.24 m
Model series
B
Engine manuf.
Case
Engine type
6T 590
Engine power
87.5 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 888 B PL FAQ

When was the Case Poclain 888 B PL manufactured?

The Case Poclain 888 B PL was manufactured from 1993 to 1995.

How much does the Case Poclain 888 B PL weigh?

The Case Poclain 888 B PL weighs 15.5 tons.

What are the transport dimensions of the Case Poclain 888 B PL wheel excavator?

The Case Poclain 888 B PL has a transport length of 8.6 meters, a transport width of 2.49 meters, and a transport height of 3.24 meters.

What is the standard tyre size of the Case Poclain 888 B PL wheel excavator's undercarriage?

The Case Poclain 888 B PL wheel excavator has standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 888 B PL wheel excavator?

The bucket capacity of the Case Poclain 888 B PL wheel excavator is 1 cubic meter.

How much is a Case Poclain 888 B PL Wheel excavator (1993u20131995) worth?

The residual value of the Case Poclain 888 B PL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
