788 PL Plus Case Poclain Excavator Specs & Dimensions - (1999 - 2002)

Case Poclain is the manufacturer of the wheel excavator model 788 PL Plus. Find and download detailed specs and data sheets for th…

Case Poclain is the manufacturer of the wheel excavator model 788 PL Plus. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 76kW or 101 horse power, delivered from its powerful case engine to the 14.6t 788 PL Plus machine. The 788 PL Plus is categorised in the medium sized machine segment in the wheel excavators category. The 788 PL Plus’s size is 2.49m x 7.55m x 3.23m. The bucket capacity of 788 PL Plus is 0,6m³, which is above average for this type of machine.

It has been sold without air Overload alert, Quick hitch hydr. And Track guidance as of 2002. There are more detailed specifications and machine descriptions available in the original Case Poclain 788 PL Plus specs data sheet.

This model can be acquired for a list price between €118000 and €150000. Production of the 788 PL Plus stopped in 2002. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 788 PL Plus specs data sheet on LECTURA Specs today!

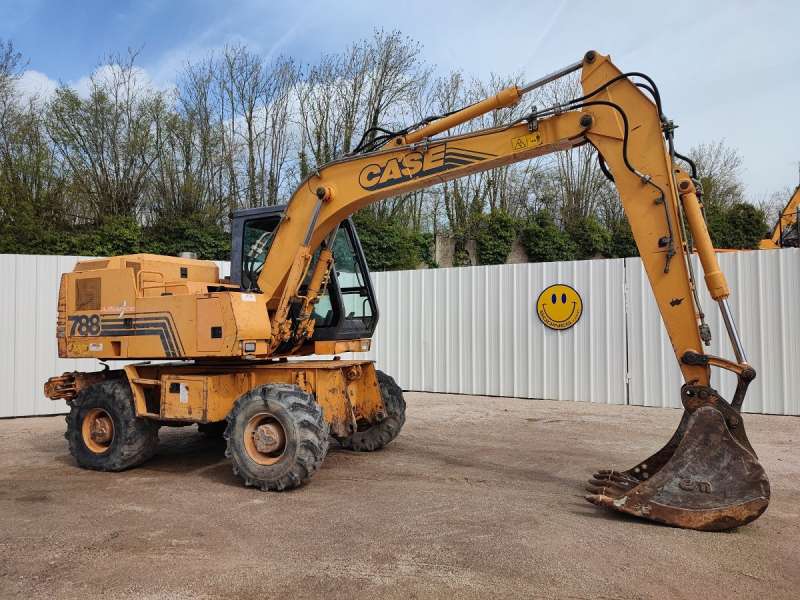

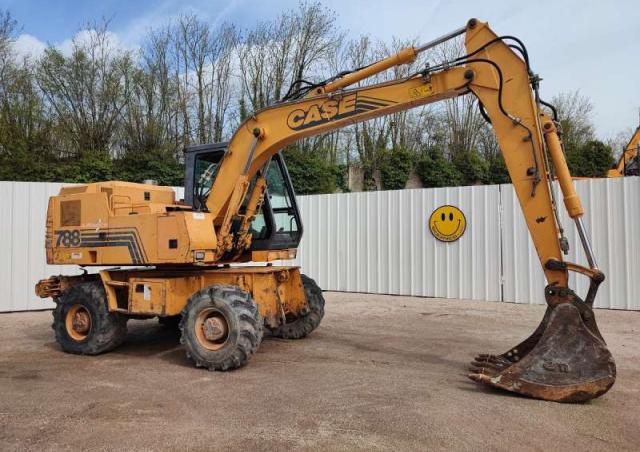

Wheel Excavators Case Poclain 788 PL Plus

Technical specs - 788 PL Plus Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.6 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Transport length
7.55 m
Transport width
2.49 m
Transport height
3.23 m
Max. Reach horizontal
8.9 m
Dredging depth
5.3 m
Bucket width
0.95 m
Model series
PL
Engine manuf.
Case
Engine type
4TA 390
Engine power
76 kW
Displacement
3.92 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 788 PL Plus FAQ

When was the Case Poclain 788 PL Plus manufactured?

The Case Poclain 788 PL Plus was manufactured from 1999 to 2002.

How much does the Case Poclain 788 PL Plus weigh?

The Case Poclain 788 PL Plus weighs 14.6 tons.

What are the transport dimensions of the Case Poclain 788 PL Plus wheel excavator?

The Case Poclain 788 PL Plus has a transport length of 7.55 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the standard tyres specifications of the Case Poclain 788 PL Plus?

The Case Poclain 788 PL Plus has standard tyres sized 10.00-20.

What are the dredging depth and maximum horizontal reach of the Case Poclain 788 PL Plus?

The Case Poclain 788 PL Plus has a dredging depth of 5.3 meters and a maximum horizontal reach of 8.9 meters.

What are the specifications of the primary work tool on the Case Poclain 788 PL Plus?

The primary work tool of the Case Poclain 788 PL Plus has a bucket capacity of 0.6 cubic meters and a bucket width of 0.95 meters.

How much is a Case Poclain 788 PL Plus Wheel excavator (1999u20132002) worth?

The residual value of the Case Poclain 788 PL Plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
