788 PL Case Poclain Excavator Specs & Dimensions - (1996 - 1999)

Case Poclain is the manufacturer of the wheel excavator model 788 PL. Find and download detailed specs and data sheets for this ma…

Case Poclain is the manufacturer of the wheel excavator model 788 PL. Find and download detailed specs and data sheets for this machine here.

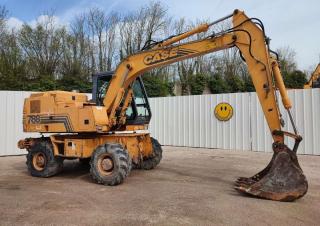

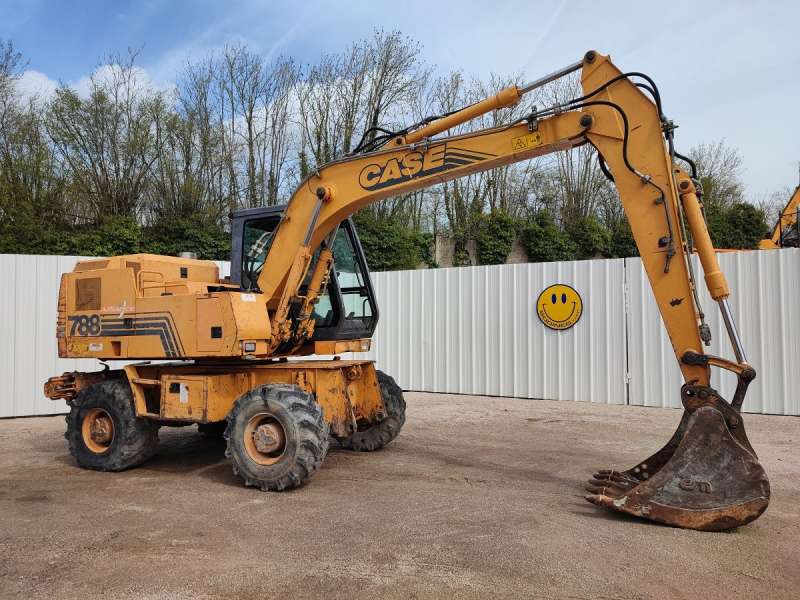

The Case Poclain 788 PL is a 14.6t machine with case engine which powers this model with up to 65kW or 87 horse power. This Case Poclain wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The bucket of 788 PL has a capacity of 0,6m³ which is average for this type of machine.

Quick hitch hydr., Material Handling Excavator and Quick hitch mech. Are not provided on this model as of 1999. There are more detailed specifications and machine descriptions available in the original Case Poclain 788 PL specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 1999, where this 788 PL was available at a new list price between €112000 and €142000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 788 PL specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 788 PL

Technical specs - 788 PL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.6 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Model series
PL
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, dipper length - standard, engine manufacturer, engine model, aspiration, engine output - net, number of track rollers - each side, track shoe width, transport length mono boom, transport height - maximum, track length on ground, tailswing radius, zero tailswing?, ground clearance, heaped bucket capacity - standard, bucket capacity - smallest, bucket capacity - largest, overall bucket width - standard, overall bucket width - smallest, overall bucket width - largest, width over fixed tracks, track gauge - standard, ground level reach - mono boom, dig height - mono boom, dump height - mono boom, dig depth - mono boom, mono boom - size, standard dipper, longest dipper, fuel tank, hydraulic tank, ground bearing pressure, dipper tearout, bucket breakout, end lift - max reach, side lift - max reach, main pump, number of main pumps, total flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 788 PL FAQ

When was the Case Poclain 788 PL manufactured?

The Case Poclain 788 PL was manufactured from 1996 to 1999.

How much does the Case Poclain 788 PL weigh?

The Case Poclain 788 PL weighs 14.6 tons.

What is the standard tyre size of the Case Poclain 788 PL wheel excavator?

The Case Poclain 788 PL has standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 788 PL wheel excavator?

The Case Poclain 788 PL wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a Case Poclain 788 PL Wheel excavator (1996u20131999) worth?

The residual value of the Case Poclain 788 PL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
