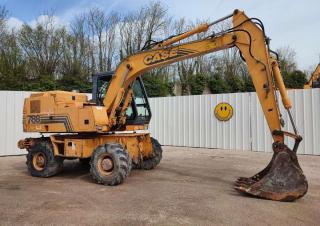

788 P4A Plus Case Poclain Excavator Specs & Dimensions - (1999 - 2002)

Case Poclain is the manufacturer of the wheel excavator model 788 P4A Plus. Find and download detailed specs and data sheets for t…

Case Poclain is the manufacturer of the wheel excavator model 788 P4A Plus. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 76kW or 101 horse power, delivered from its powerful case engine to the 16.5t 788 P4A Plus machine. The Case Poclain 788 P4A Plus can be grouped in the medium sized machine segment in the wheel excavators category. The model's dimensions are 7.55m x 2.49m x 3.23m. The bucket of 788 P4A Plus has a capacity of 0,6m³ which is average for this type of machine.

It does not include Aircondition, Quick hitch hydr. And Blade. There are more detailed specifications and machine descriptions available in the original Case Poclain 788 P4A Plus specs data sheet.

The production stopped in 2002, where this 788 P4A Plus was available at a new list price between €128000 and €163000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 788 P4A Plus specs data sheet on LECTURA Specs today!

788 P4A Plus

Years of manufacture: 1999—2002

Buy & Rent
Spare parts
Transport
News

Technical specs - 788 P4A Plus Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.5 t

Standard tyres: 10.00-20

Bucket capacity: 0.6 m³

Transport length: 7.55 m

Transport width: 2.49 m

Transport height: 3.23 m

Max. Reach horizontal: 8.9 m

Dredging depth: 5.3 m

Bucket width: 0.95 m

Model series: P

Engine manuf.: Case

Engine type: 4TA 390

Engine power: 76 kW

Displacement: 3.92 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Track guidance: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Case Poclain 788 P4A Plus FAQ

When was the Case Poclain 788 P4A Plus manufactured?

The Case Poclain 788 P4A Plus was manufactured from 1999 to 2002.

How much does the Case Poclain 788 P4A Plus weigh?

The Case Poclain 788 P4A Plus weighs 16.5 tons.

What are the transport dimensions of the Case Poclain 788 P4A Plus wheel excavator?

The Case Poclain 788 P4A Plus has a transport length of 7.55 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the undercarriage specifications of the Case Poclain 788 P4A Plus?

The Case Poclain 788 P4A Plus is equipped with standard tyres sized 10.00-20.

What is the excavation performance of the Case Poclain 788 P4A Plus?

The Case Poclain 788 P4A Plus has a dredging depth of 5.3 meters and a maximum horizontal reach of 8.9 meters.

What are the bucket specifications of the Case Poclain 788 P4A Plus wheel excavator?

The Case Poclain 788 P4A Plus has a bucket capacity of 0.6 cubic meters and a bucket width of 0.95 meters.

How much is a Case Poclain 788 P4A Plus Wheel excavator (1999u20132002) worth?

The residual value of the Case Poclain 788 P4A Plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
