788 P2AL Case Poclain Excavator Specs & Dimensions - (1996 - 1999)

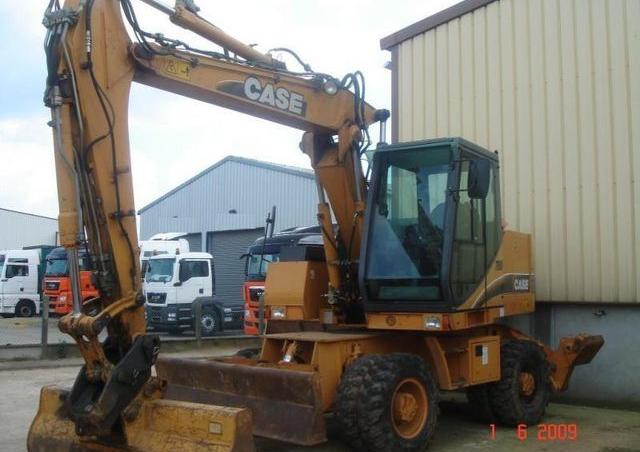

Manufactured by Case Poclain, this is the 788 P2AL wheel excavator. Find and download detailed specs and data sheets for this mach…

Manufactured by Case Poclain, this is the 788 P2AL wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful case engine, this 788 P2AL 15.4t machine can provide 76kW or 101 horse power for the wheel excavator. The Case Poclain 788 P2AL can be grouped in the medium sized machine segment in the wheel excavators category. The model's dimensions are 7.55m x 2.49m x 3.23m. The bucket capacity of 788 P2AL is 0,6m³, which is above average for this type of machine.

It does not include Material Handling Excavator, Diesel particulate filter and Track guidance. There are more detailed specifications and machine descriptions available in the original Case Poclain 788 P2AL specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €117000 and €149000. Production of the 788 P2AL stopped in 1999. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Case Poclain. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Case Poclain 788 P2AL specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 788 P2AL

Technical specs - 788 P2AL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.4 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Transport length
7.55 m
Transport width
2.49 m
Transport height
3.23 m
Model series
P
Engine manuf.
Case
Engine type
4T 390
Engine power
76 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 788 P2AL FAQ

When was the Case Poclain 788 P2AL manufactured?

The Case Poclain 788 P2AL was manufactured from 1996 to 1999.

How much does the Case Poclain 788 P2AL weigh?

The Case Poclain 788 P2AL weighs 15.4 tons.

What are the transport dimensions of the Case Poclain 788 P2AL wheel excavator?

The Case Poclain 788 P2AL has a transport length of 7.55 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the undercarriage specifications of the Case Poclain 788 P2AL wheel excavator?

The Case Poclain 788 P2AL is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 788 P2AL wheel excavator?

The Case Poclain 788 P2AL wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a Case Poclain 788 P2AL Wheel excavator (1996u20131999) worth?

The residual value of the Case Poclain 788 P2AL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
