788 P2A Case Poclain Excavator Specs & Dimensions - (1996 - 1999)

Case Poclain is the manufacturer of the wheel excavator model 788 P2A. Find and download detailed specs and data sheets for this m…

Case Poclain is the manufacturer of the wheel excavator model 788 P2A. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 65kW or 87 horse power, delivered from its powerful case engine to the 14.9t 788 P2A machine. The Case Poclain 788 P2A can be grouped in the medium sized machine segment in the wheel excavators category. The 788 P2A’s size is 2.49m x 7.55m x 3.23m. The bucket capacity of 788 P2A is 0,6m³, which is above average for this type of machine.

It has been sold without air Material Handling Excavator, Diesel particulate filter and Blade as of 1999. There are more detailed specifications and machine descriptions available in the original Case Poclain 788 P2A specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €114000 and €144000. Production of the 788 P2A stopped in 1999. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 788 P2A specs data sheet on LECTURA Specs today!

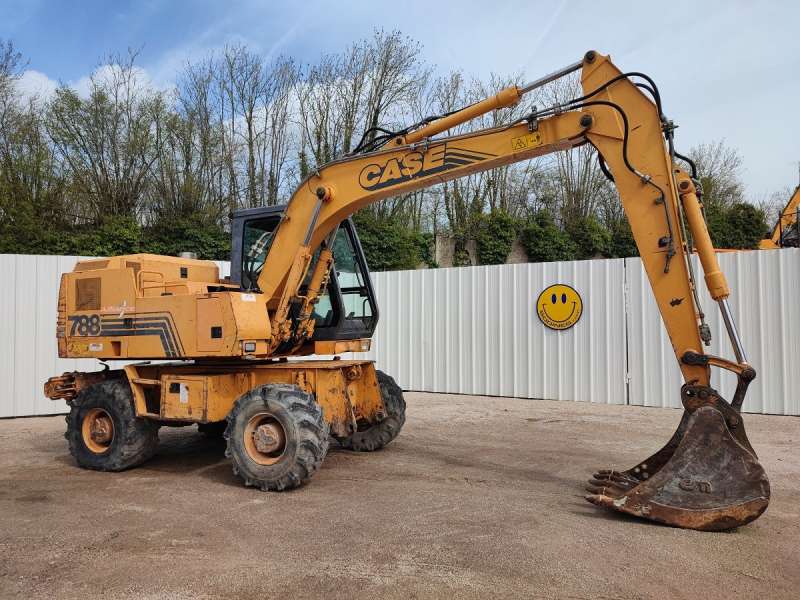

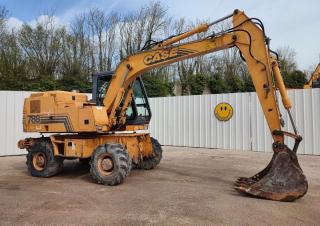

Wheel Excavators Case Poclain 788 P2A

Technical specs - 788 P2A Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.9 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Transport length
7.55 m
Transport width
2.49 m
Transport height
3.23 m
Max. Reach horizontal
8.90 m
Model series
P
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 788 P2A FAQ

When was the Case Poclain 788 P2A manufactured?

The Case Poclain 788 P2A was manufactured from 1996 to 1999.

How much does the Case Poclain 788 P2A weigh?

The Case Poclain 788 P2A weighs 14.9 tons.

What are the transport dimensions of the Case Poclain 788 P2A wheel excavator?

The Case Poclain 788 P2A has a transport length of 7.55 meters, a width of 2.49 meters, and a height of 3.23 meters.

What is the standard tyre size of the Case Poclain 788 P2A wheel excavator?

The Case Poclain 788 P2A is equipped with standard tyres sized 10.00-20.

What is the maximum horizontal reach of the Case Poclain 788 P2A wheel excavator?

The Case Poclain 788 P2A has a maximum horizontal reach of 8.9 meters.

What is the bucket capacity of the Case Poclain 788 P2A wheel excavator?

The bucket capacity of the Case Poclain 788 P2A wheel excavator is 0.6 cubic meters.

How much is a Case Poclain 788 P2A Wheel excavator (1996u20131999) worth?

The residual value of the Case Poclain 788 P2A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
