688 P 2AL Case Poclain Excavator Specs & Dimensions - (1989 - 1993)

The 688 P 2AL wheel excavator model is manufactured by Case Poclain. Find and download detailed specs and data sheets for this mac…

The 688 P 2AL wheel excavator model is manufactured by Case Poclain. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 70kW or 93 horse power, delivered from its powerful case engine to the 14.1t 688 P 2AL machine. The Case Poclain 688 P 2AL can be grouped in the smallest machine segment in the wheel excavators category. The 688 P 2AL’s size is 2.46m x 7.85m x 2.85m. The bucket capacity of 688 P 2AL is 0,7m³, which is above average for this type of machine.

Cabin adjustment, Diesel particulate filter and Track guidance are not provided on this model as of 1993. There are more detailed specifications and machine descriptions available in the original Case Poclain 688 P 2AL specs data sheet.

This model can be acquired for a list price between €138000 and €175000. Production of the 688 P 2AL stopped in 1993. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Case Poclain. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Case Poclain 688 P 2AL specs data sheet on LECTURA Specs today!

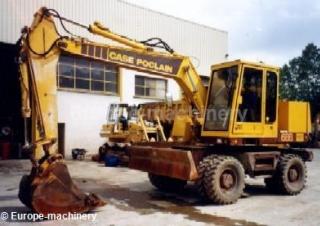

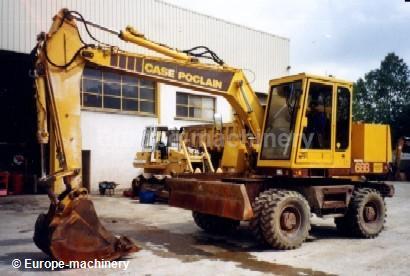

Wheel Excavators Case Poclain 688 P 2AL

Technical specs - 688 P 2AL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.1 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Transport length
7.85 m
Transport width
2.46 m
Transport height
2.85 m
Model series
P
Engine manuf.
Case
Engine type
4T 390
Engine power
70 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 688 P 2AL FAQ

When was the Case Poclain 688 P 2AL manufactured?

The Case Poclain 688 P 2AL was manufactured from 1989 to 1993.

How much does the Case Poclain 688 P 2AL weigh?

The Case Poclain 688 P 2AL weighs 14.1 tons.

What are the transport dimensions of the Case Poclain 688 P 2AL wheel excavator?

The Case Poclain 688 P 2AL has a transport length of 7.85 meters, a transport width of 2.46 meters, and a transport height of 2.85 meters.

What are the undercarriage specifications of the Case Poclain 688 P 2AL wheel excavator?

The Case Poclain 688 P 2AL wheel excavator is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 688 P 2AL wheel excavator?

The Case Poclain 688 P 2AL wheel excavator has a bucket capacity of 0.7 cubic meters.

How much is a Case Poclain 688 P 2AL Wheel excavator (1989u20131993) worth?

The residual value of the Case Poclain 688 P 2AL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
