688 B P2AL Case Poclain Excavator Specs & Dimensions - (1993 - 1995)

Manufactured by Case Poclain, this is the 688 B P2AL wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Case Poclain, this is the 688 B P2AL wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Case Poclain 688 B P2AL is a 14.1t machine with case engine which powers this model with up to 65kW or 87 horse power. This Case Poclain wheel excavator belongs to the smallest machine segment in the wheel excavators category. The 688 B P2AL’s size is 2.49m x 7.65m x 3.23m. The bucket capacity of 688 B P2AL is 0,7m³, which is above average for this type of machine.

It does not include Quick hitch mech., Quick hitch hydr. And Cabin adjustment. There are more detailed specifications and machine descriptions available in the original Case Poclain 688 B P2AL specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 1995, where this 688 B P2AL was available at a new list price between €150000 and €191000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Case Poclain. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Case Poclain 688 B P2AL specs data sheet on LECTURA Specs today!

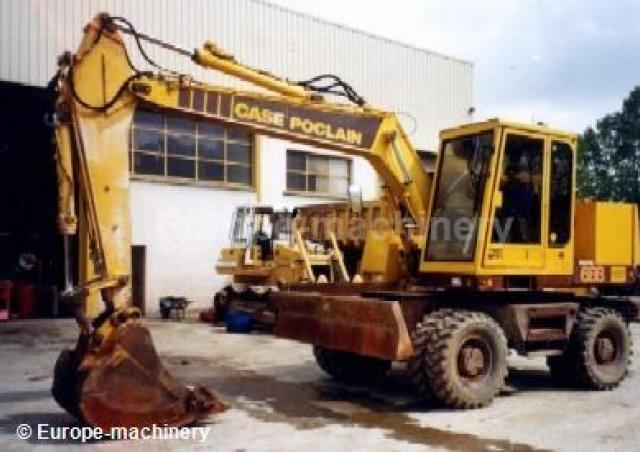

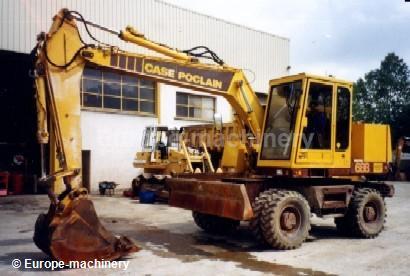

Wheel Excavators Case Poclain 688 B P2AL

Technical specs - 688 B P2AL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.1 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Transport length
7.65 m
Transport width
2.49 m
Transport height
3.23 m
Model series
B
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 688 B P2AL FAQ

When was the Case Poclain 688 B P2AL manufactured?

The Case Poclain 688 B P2AL was manufactured from 1993 to 1995.

How much does the Case Poclain 688 B P2AL weigh?

The Case Poclain 688 B P2AL weighs 14.1 tons.

What are the transport dimensions of the Case Poclain 688 B P2AL wheel excavator?

The Case Poclain 688 B P2AL has a transport length of 7.65 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the undercarriage tyre specifications of the Case Poclain 688 B P2AL wheel excavator?

The Case Poclain 688 B P2AL is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 688 B P2AL wheel excavator?

The Case Poclain 688 B P2AL wheel excavator has a bucket capacity of 0.7 cubic meters.

How much is a Case Poclain 688 B P2AL Wheel excavator (1993u20131995) worth?

The residual value of the Case Poclain 688 B P2AL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
