190 W Atlas Excavator Specs & Dimensions - (2010 - 2019)

The 190 W wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here. …

The 190 W wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 116kW or 155 horse power, delivered from its powerful Cummins engine to the 19.2t 190 W machine. The 190 W is categorised in the biggest machine segment in the wheel excavators category. The model's dimensions are 8.91m x 2.49m x 3.15m. The bucket of 190 W has a capacity of 0,93m³ which is average for this type of machine.

The Atlas 190 W has been equipped and sold with Blade, Aircondition and Overload alert. Quick hitch mech., Quick hitch hydr. And Cabin adjustment are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Atlas 190 W specs data sheet. Available in English, German and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production is still going in 2017, where this 190 W is available at a new list price between €231000 and €294000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Atlas currently produces 14 other wheel excavators, which range from 14.9t up to 52t - the most visited on LECTURA Specs are 1404 ZW, 1604 ZW, 350 MH. Ranked in the LECTURA index at #71, this 190 W wheel excavator has models that date from 2010 to 2017. Want more detailed specifications? Download the latest Atlas 190 W specs data sheet on LECTURA Specs today!

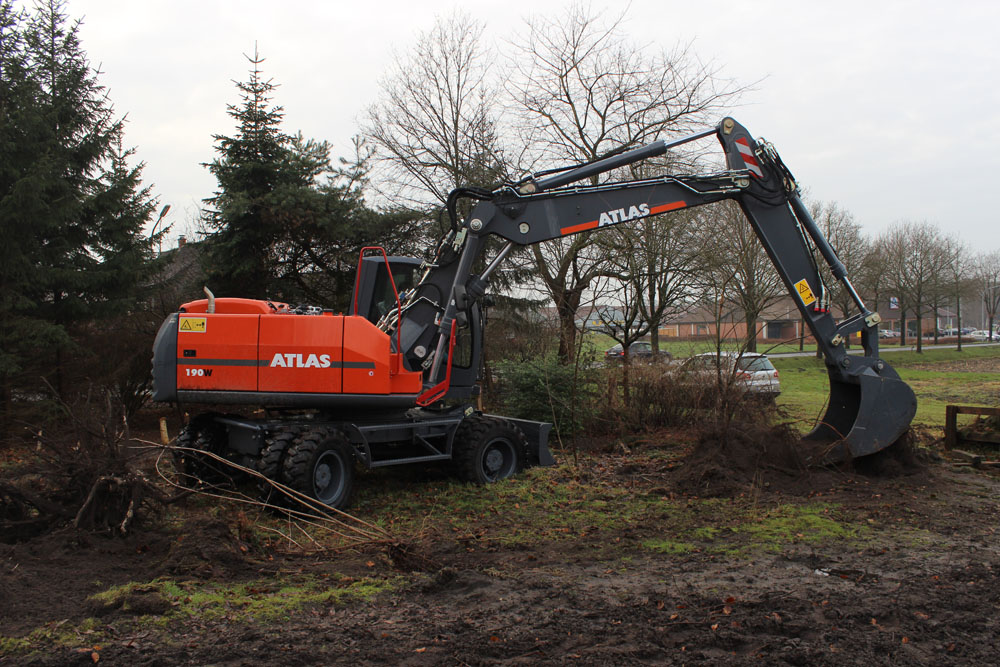

Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W

Visit Atlas live at

Technical specs - 190 W Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Standard tyres
10.00-20
Bucket capacity
0.93 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
8.91 m
Transport width
2.49 m
Transport height
3.15 m
Max. Reach horizontal
8.9 m
Dredging depth
5.3 m
Tear-out force
98 kN
Bucket width
1.1 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
116 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 190 W FAQ

When was the Atlas 190 W manufactured?

The Atlas 190 W was manufactured from 2010 to 2019.

How much does the Atlas 190 W wheel excavator weigh?

The Atlas 190 W wheel excavator weighs 20 tons.

What are the transport dimensions of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator has a transport length of 8.91 meters, a transport width of 2.49 meters, and a transport height of 3.15 meters.

What is the travel speed of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator is equipped with standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator has an adjustable boom, a maximum horizontal reach of 8.9 meters, and a dredging depth of 5.3 meters.

What power ratings are available for the Atlas 190 W wheel excavator?

There are no power ratings provided for the Atlas 190 W wheel excavator in the available data.

What are the specifications of the primary work tool on the Atlas 190 W wheel excavator?

The primary work tool of the Atlas 190 W wheel excavator has a bucket capacity of 0.93 cubic meters and a bucket width of 1.1 meters.

How much is a Atlas 190 W Wheel excavator (2010u20132019) worth?

The residual value of the Atlas 190 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
