175 W-SR Atlas Excavator Specs & Dimensions - (2021 - 2026)

Weight: 17.4t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Transport length: 7.95m – Transport width: 2.5m…

Weight: 17.4t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Transport length: 7.95m – Transport width: 2.5m

Check out detailed dimensions, specifications, information and technical data for Atlas 175 W-SR excavator manufactured between 2021 - 2026. Get more in-depth insight with Atlas 175 W-SR digger specifications. See information, like: Weight: 17.4t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Transport length: 7.95m – Transport width: 2.5m and more.

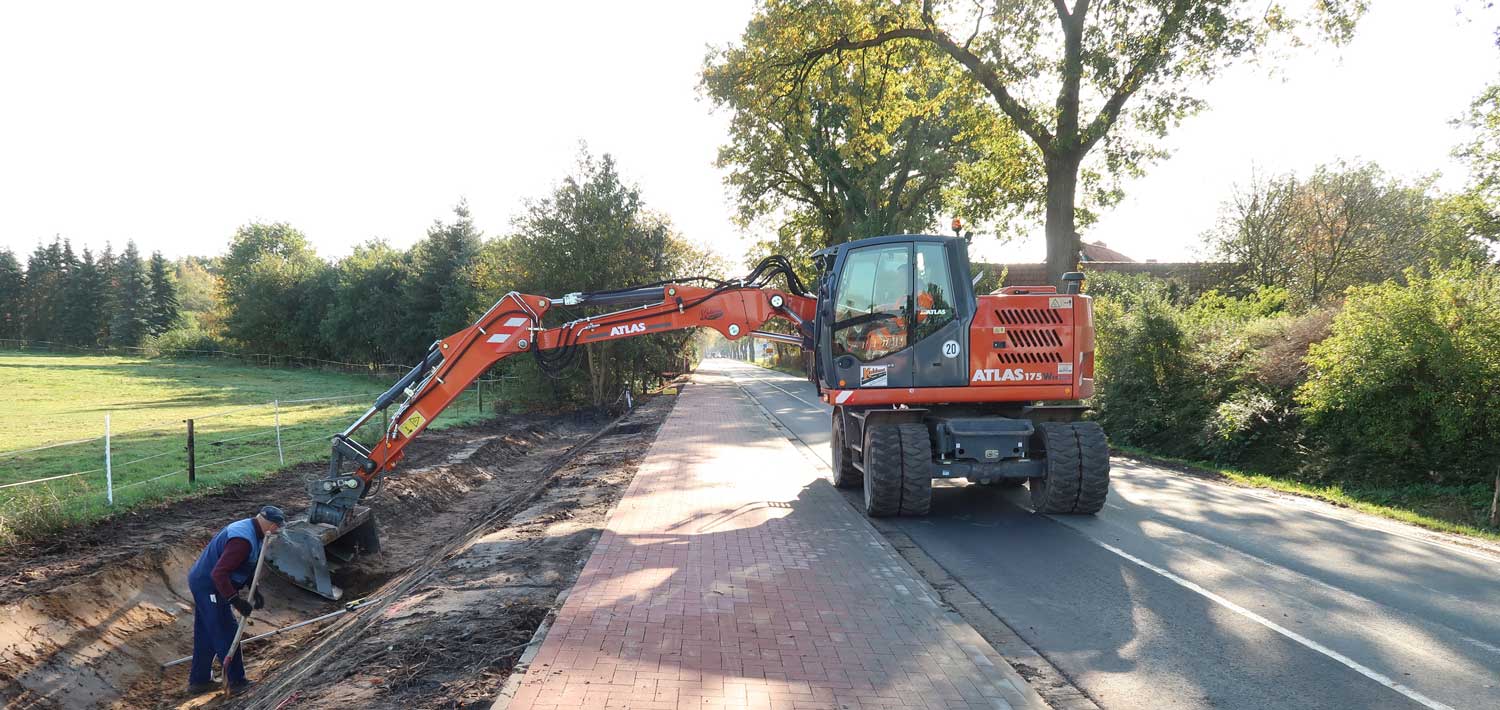

Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR
Wheel Excavators Atlas 175 W-SR

Visit Atlas live at

Technical specs - 175 W-SR Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.4 t
Standard tyres
10.00-20
Bucket capacity
1.3 m³
Boom
VA
Transport length
7.95 m
Transport width
2.5 m
Transport height
3.14 m
Max. Reach horizontal
9.75 m
Dredging depth
6.1 m
Tear-out force
72 kN
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD4.1
Engine power
115 kW
Displacement
4.04 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Atlas 175 W-SR FAQ

When was the Atlas 175 W-SR manufactured?

The Atlas 175 W-SR was first produced in 2021.

How much does the Atlas 175 W-SR wheel excavator weigh?

The Atlas 175 W-SR wheel excavator weighs 17.4 tons.

What are the transport dimensions of the Atlas 175 W-SR wheel excavator?

The Atlas 175 W-SR has a transport length of 7.95 meters, a transport width of 2.5 meters, and a transport height of 3.14 meters.

What is the travel speed of the Atlas 175 W-SR wheel excavator?

The Atlas 175 W-SR wheel excavator has a travel speed of 20 km/h.

What is the fuel consumption range of the Atlas 175 W-SR wheel excavator?

The fuel consumption range of the Atlas 175 W-SR wheel excavator is between 7 and 15 liters per hour.

What are the undercarriage specifications of the Atlas 175 W-SR wheel excavator?

The Atlas 175 W-SR wheel excavator is equipped with standard tyres sized 10.00-20.

What are the excavation performance specifications of the Atlas 175 W-SR wheel excavator?

The Atlas 175 W-SR wheel excavator has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.75 meters, and features an adjustable boom.

What is the tear-out force of the Atlas 175 W-SR wheel excavator?

The Atlas 175 W-SR wheel excavator has a tear-out force of 72 kN.

What is the bucket capacity of the Atlas 175 W-SR wheel excavator?

The bucket capacity of the Atlas 175 W-SR wheel excavator is 1.3 cubic meters.

How much is a Atlas 175 W-SR Wheel excavator (2021u20132025) worth?

The residual value of the Atlas 175 W-SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
