155 W Atlas Excavator Specs & Dimensions - (2024 - 2026)

Weight: 15.5t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length…

Weight: 15.5t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 7.5m

Check out detailed dimensions, specifications, information and technical data for Atlas 155 W excavator manufactured between 2024 - 2026. Get more in-depth insight with Atlas 155 W digger specifications. See information, like: Weight: 15.5t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 7.5m and more.

Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W
Wheel Excavators Atlas 155 W

Visit Atlas live at

Technical specs - 155 W Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.5 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
7.5 m
Transport width
2.49 m
Transport height
3.15 m
Max. Reach horizontal
8.4 m
Dredging depth
4.9 m
Tear-out force
64 kN
Bucket width
1.1 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD4.1
Engine power
105 kW
Displacement
4.1 l
Max. torque
604 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes

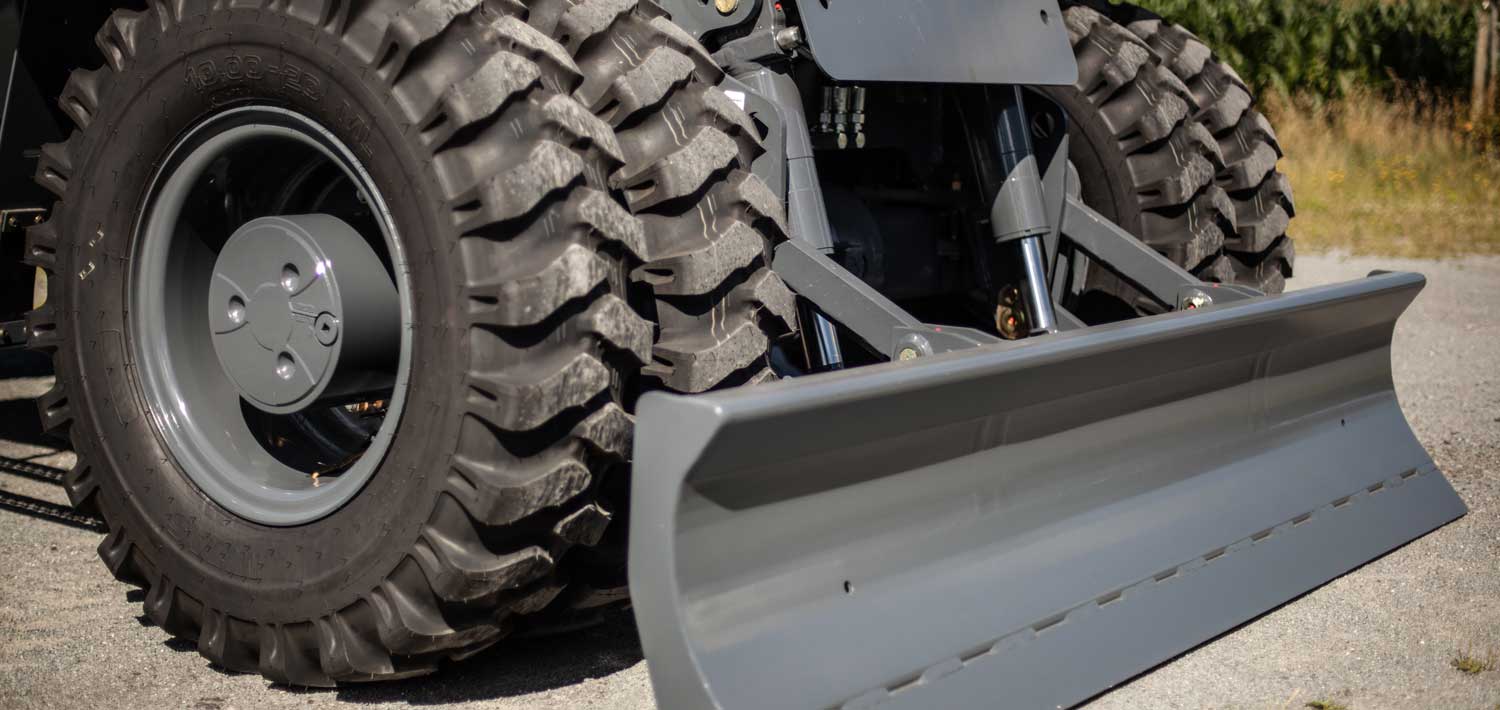

Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Atlas 155 W FAQ

When was the Atlas 155 W manufactured?

The Atlas 155 W was first produced in 2024.

How much does the Atlas 155 W wheel excavator weigh?

The Atlas 155 W wheel excavator weighs 15.5 tons.

What are the transport dimensions of the Atlas 155 W wheel excavator?

The Atlas 155 W wheel excavator has a transport length of 7.5 meters, a transport width of 2.49 meters, and a transport height of 3.15 meters.

What is the travel speed of the Atlas 155 W wheel excavator?

The Atlas 155 W wheel excavator has a travel speed of 20 km/h.

What is the fuel consumption range of the Atlas 155 W wheel excavator?

The fuel consumption range of the Atlas 155 W wheel excavator is 8 to 12 liters per hour.

What are the undercarriage specifications of the Atlas 155 W wheel excavator?

The Atlas 155 W wheel excavator is equipped with standard 10.00-20 tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Atlas 155 W wheel excavator?

The Atlas 155 W wheel excavator has a dredging depth of 4.9 meters, a maximum horizontal reach of 8.4 meters, and features an adjustable boom.

What is the tear-out force of the Atlas 155 W wheel excavator?

The Atlas 155 W wheel excavator has a tear-out force of 64 kN.

What are the specifications of the primary work tool on the Atlas 155 W wheel excavator?

The primary work tool of the Atlas 155 W wheel excavator has a bucket capacity of 1 cubic meter and a bucket width of 1.1 meters.

How much is a Atlas 155 W Wheel excavator (2024u20132025) worth?

The residual value of the Atlas 155 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
