140 W Atlas Excavator Specs & Dimensions - (2010 - 2013)

Manufactured by Atlas, this is the 140 W wheel excavator. Find and download detailed specs and data sheets for this machine here. …

Manufactured by Atlas, this is the 140 W wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Atlas 140 W is a 14.9t machine with Deutz engine which powers this model with up to 83kW or 111 horse power. This Atlas wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 7.72m x 2.49m x 3.08m. The bucket of 140 W has a capacity of 0,92m³ which is average for this type of machine.

The 140 W is manufactured and distributed with Blade, Overload alert and Aircondition. It has been sold without air Track guidance, Quick hitch hydr. And Diesel particulate filter as of 2013. There are more detailed specifications and machine descriptions available in the original Atlas 140 W specs data sheet. Available in French, German and English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production stopped in 2013, where this 140 W was available at a new list price between €183000 and €233000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 15 other wheel excavators, which range from 14.9t up to 52t are produced by Atlas. Of these, 1604 ZW, 350 MH and also 1404 ZW are the most frequently visited on LECTURA Specs. Currently, 15 models of the 140 W wheel excavator exist, at an average sale value of €84500 at 6 years of age. Want more detailed specifications? Download the latest Atlas 140 W specs data sheet on LECTURA Specs today!

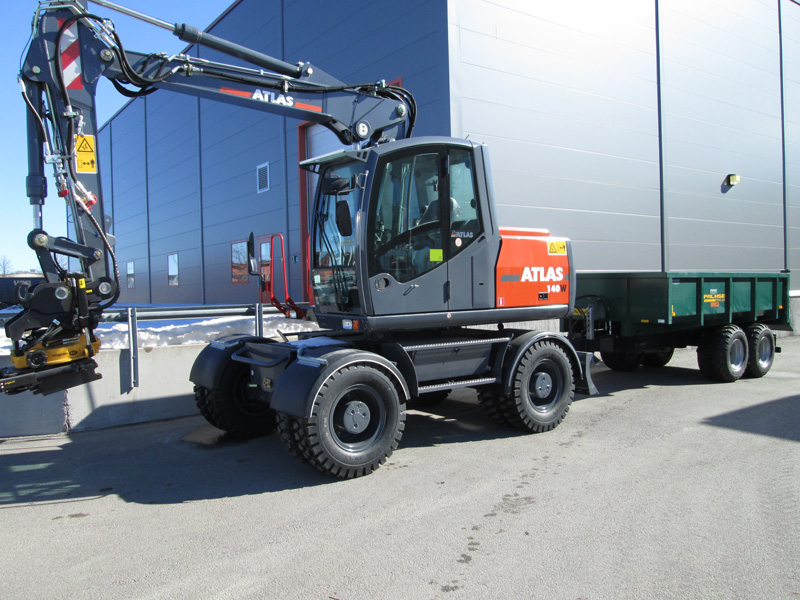

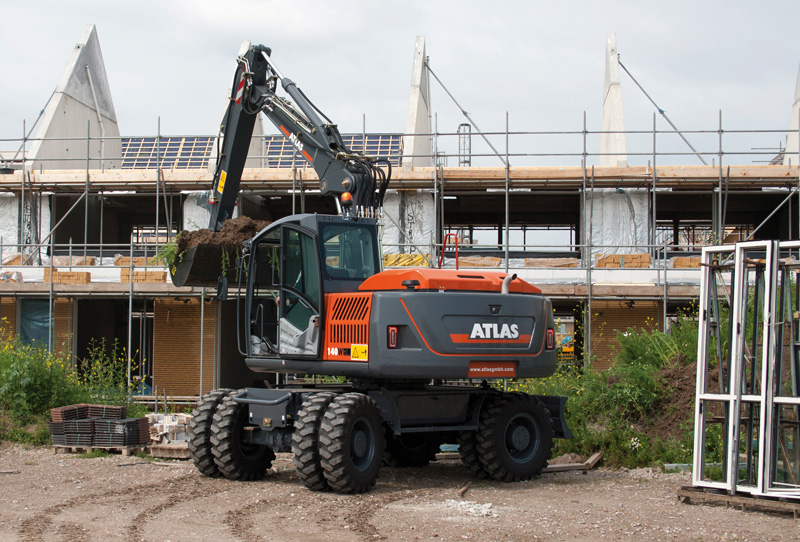

Wheel Excavators Atlas 140 W
Wheel Excavators Atlas 140 W
Wheel Excavators Atlas 140 W
Wheel Excavators Atlas 140 W
Wheel Excavators Atlas 140 W
Wheel Excavators Atlas 140 W

Visit Atlas live at

Technical specs - 140 W Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.9 t
Standard tyres
8x10.00-20
Bucket capacity
0.92 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
7.72 m
Transport width
2.49 m
Transport height
3.08 m
Max. Reach horizontal
8.4 m
Dredging depth
4.9 m
Tear-out force
64 kN
Bucket width
1.1 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD2012 L04 2V
Engine power
83 kW
Displacement
4.038 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, overall width, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 140 W FAQ

When was the Atlas 140 W wheel excavator manufactured?

The Atlas 140 W wheel excavator was manufactured from 2010 to 2013.

How much does the Atlas 140 W wheel excavator weigh?

The Atlas 140 W wheel excavator weighs 14.9 tons.

What are the transport dimensions of the Atlas 140 W wheel excavator?

The Atlas 140 W wheel excavator has a transport length of 7.72 meters, a transport width of 2.49 meters, and a transport height of 3.08 meters.

What is the travel speed of the Atlas 140 W wheel excavator?

The Atlas 140 W wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas 140 W wheel excavator?

The Atlas 140 W wheel excavator is equipped with 8x10.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Atlas 140 W wheel excavator?

The Atlas 140 W wheel excavator has a dredging depth of 4.9 meters, a maximum horizontal reach of 8.4 meters, and features an adjustable boom.

What is the tear-out force of the Atlas 140 W wheel excavator?

The Atlas 140 W wheel excavator has a tear-out force of 64 kN.

What are the bucket specifications of the Atlas 140 W wheel excavator?

The Atlas 140 W wheel excavator has a bucket capacity of 0.92 cubic meters and a bucket width of 1.1 meters.

How much is a Atlas 140 W Wheel excavator (2010u20132013) worth?

The residual value of the Atlas 140 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
