ZM100 Zeppelin Excavator Specs & Dimensions - (2019 - 2026)

Weight: 10.1t – Standard tyres: 8.25-20/14PR – Bucket capacity: 0.46m³ – Transport length: 6.656m – Transport width: 2.454m – Tran…

Weight: 10.1t – Standard tyres: 8.25-20/14PR – Bucket capacity: 0.46m³ – Transport length: 6.656m – Transport width: 2.454m – Transport height: 2.988m

Check out detailed dimensions, specifications, information and technical data for Zeppelin ZM100 excavator manufactured between 2019 - 2026. Get more in-depth insight with Zeppelin ZM100 digger specifications. See information, like: Weight: 10.1t – Standard tyres: 8.25-20/14PR – Bucket capacity: 0.46m³ – Transport length: 6.656m – Transport width: 2.454m – Transport height: 2.988m and more.

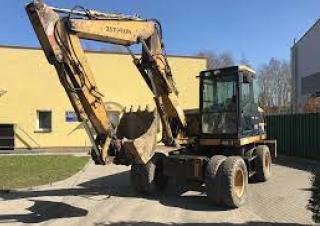

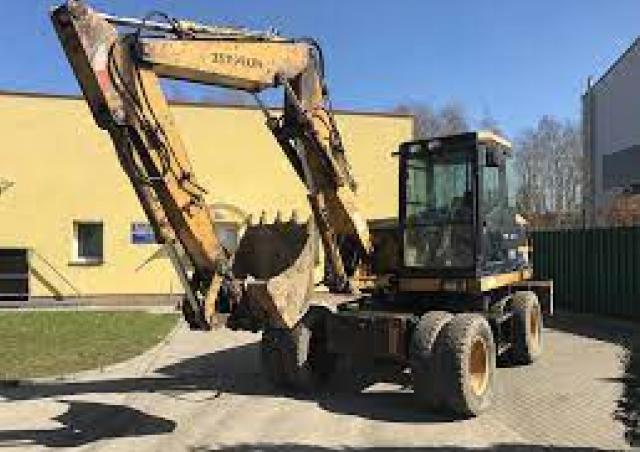

Wheel Excavators Zeppelin ZM100

Visit Zeppelin live at

Technical specs - ZM100 Zeppelin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.1 t
Standard tyres
8.25-20/14PR
Bucket capacity
0.46 m³
Transport length
6.656 m
Transport width
2.454 m
Transport height
2.988 m
Max. Reach horizontal
7.605 m
Dredging depth
3.95 m
Travel speed
20 km/h
Model series
ZM
Engine manuf.
Perkins
Engine type
854E-E34TA
Engine power
55 kW
Displacement
3.387 l
No. of cylinders
4
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Zeppelin ZM100 FAQ

When was the Zeppelin ZM100 manufactured?

The Zeppelin ZM100 was first produced in 2019.

How much does the Zeppelin ZM100 weigh?

The Zeppelin ZM100 weighs 10.1 tons.

What are the transport dimensions of the Zeppelin ZM100 wheel excavator?

The Zeppelin ZM100 has a transport length of 6.66 meters, a transport width of 2.45 meters, and a transport height of 2.99 meters.

What is the travel speed of the Zeppelin ZM100 wheel excavator?

The travel speed of the Zeppelin ZM100 wheel excavator is 20 km/h.

What are the standard tyres of the Zeppelin ZM100 wheel excavator?

The Zeppelin ZM100 wheel excavator is equipped with standard tyres sized 8.25-20/14PR.

What are the excavation performance specifications of the Zeppelin ZM100 wheel excavator?

The Zeppelin ZM100 wheel excavator has a dredging depth of 3.95 meters and a maximum horizontal reach of 7.605 meters.

What is the bucket capacity of the Zeppelin ZM100 wheel excavator?

The bucket capacity of the Zeppelin ZM100 wheel excavator is 0.46 cubic meters.

How much is a Zeppelin ZM100 Wheel excavator (2019u20132025) worth?

The residual value of the Zeppelin ZM100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
