B95W Zirkular Yanmar Excavator Specs & Dimensions - (2021 - 2026)

Weight: 9.5t – Standard tyres: 8.25-20 14 PR Zwillingsbereifung – Transport length: 6.7m – Transport width: 2.46m – Transport heig…

Weight: 9.5t – Standard tyres: 8.25-20 14 PR Zwillingsbereifung – Transport length: 6.7m – Transport width: 2.46m – Transport height: 2.9m – Max. Reach horizontal: 7.99m

Check out detailed dimensions, specifications, information and technical data for Yanmar B95W Zirkular excavator manufactured between 2021 - 2026. Get more in-depth insight with Yanmar B95W Zirkular digger specifications. See information, like: Weight: 9.5t – Standard tyres: 8.25-20 14 PR Zwillingsbereifung – Transport length: 6.7m – Transport width: 2.46m – Transport height: 2.9m – Max. Reach horizontal: 7.99m and more.

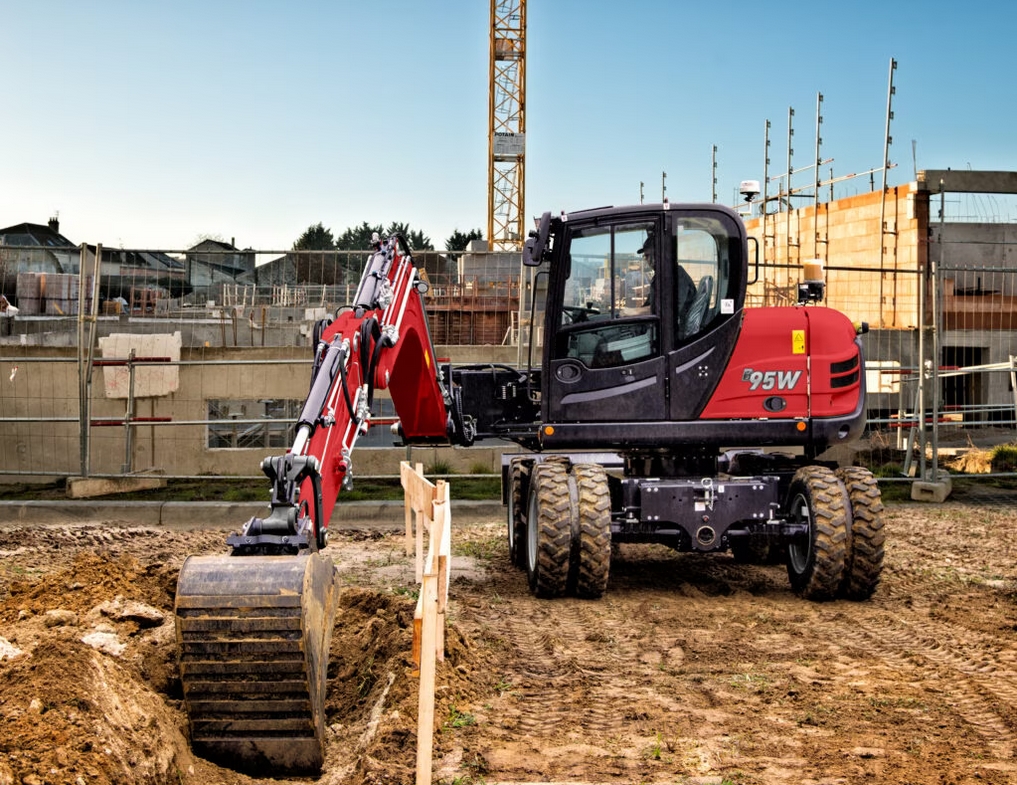

Wheel Excavators Yanmar B95W Zirkular
Wheel Excavators Yanmar B95W Zirkular
Wheel Excavators Yanmar B95W Zirkular
Wheel Excavators Yanmar B95W Zirkular

Technical specs - B95W Zirkular Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.5 t
Standard tyres
8.25-20 14 PR Zwillingsbereifung
Transport length
6.7 m
Transport width
2.46 m
Transport height
2.9 m
Max. Reach horizontal
7.99 m
Dredging depth
4.16 m
Tear-out force
42.6 kN
Travel speed
36 km/h
Model series
B
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74.4 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Max. torque
410/1600 Nm
No. of cylinders
4
Emission level
EU V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar B95W Zirkular FAQ

When was the Yanmar B95W Zirkular manufactured?

The Yanmar B95W Zirkular was first produced in 2024.

How much does the Yanmar B95W Zirkular weigh?

The Yanmar B95W Zirkular weighs 9.5 tons.

What are the transport dimensions of the Yanmar B95W Zirkular wheel excavator?

The Yanmar B95W Zirkular has a transport length of 6.7 meters, a transport width of 2.46 meters, and a transport height of 2.9 meters.

What is the travel speed of the Yanmar B95W Zirkular wheel excavator?

The Yanmar B95W Zirkular has a travel speed of 36 km/h.

What are the undercarriage tyre specifications of the Yanmar B95W Zirkular wheel excavator?

The Yanmar B95W Zirkular is equipped with standard tyres sized 8.25-20 14 PR Zwillingsbereifung.

What are the excavation performance specifications of the Yanmar B95W Zirkular?

The Yanmar B95W Zirkular has a dredging depth of 4.16 meters and a maximum horizontal reach of 7.99 meters.

What is the tear-out force of the Yanmar B95W Zirkular?

The Yanmar B95W Zirkular has a tear-out force of 42.6 kN. No power rating data is available for this machine in the provided source.
