B95W Yanmar Excavator Specs & Dimensions - (2019 - 2024)

Weight: 9.5t – Bucket capacity: 0.348m³ – Boom: MB – Transport length: 7.63m – Transport width: 2.46m – Transport height: 2.9m…

Weight: 9.5t – Bucket capacity: 0.348m³ – Boom: MB – Transport length: 7.63m – Transport width: 2.46m – Transport height: 2.9m

Check out detailed dimensions, specifications, information and technical data for Yanmar B95W excavator manufactured between 2019 - 2024. Get more in-depth insight with Yanmar B95W digger specifications. See information, like: Weight: 9.5t – Bucket capacity: 0.348m³ – Boom: MB – Transport length: 7.63m – Transport width: 2.46m – Transport height: 2.9m and more.

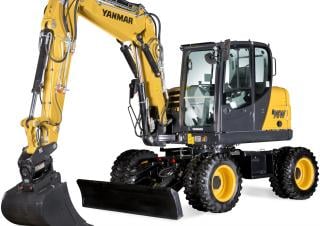

Wheel Excavators Yanmar B95W

Technical specs - B95W Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.5 t
Bucket capacity
0.348 m³
Boom
MB
Transport length
7.63 m
Transport width
2.46 m
Transport height
2.9 m
Max. Reach horizontal
7.82 m
Dredging depth
4.08 m
Tear-out force
53.2 kN
Turning radius outside
6.7 m
Travel speed
36 km/h
Model series
B
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
No. of cylinders
4
Emission level
V/Tier 4 f

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar B95W FAQ

When was the Yanmar B95W manufactured?

The Yanmar B95W was manufactured from 2019 to 2024.

How much does the Yanmar B95W wheel excavator weigh?

The Yanmar B95W wheel excavator weighs 9.5 tons.

What are the transport dimensions of the Yanmar B95W wheel excavator?

The Yanmar B95W has a transport length of 7.63 meters, a transport width of 2.46 meters, and a transport height of 2.9 meters.

What is the travel speed of the Yanmar B95W wheel excavator?

The Yanmar B95W wheel excavator has a travel speed of 36 km/h.

What is the outside turning radius of the Yanmar B95W wheel excavator?

The Yanmar B95W wheel excavator has an outside turning radius of 6.7 meters.

What are the excavation performance specifications of the Yanmar B95W wheel excavator?

The Yanmar B95W wheel excavator has a dredging depth of 4.08 meters, a maximum horizontal reach of 7.82 meters, and is equipped with a monobloc boom.

What is the tear-out force, the available power-related specification, of the Yanmar B95W wheel excavator?

The Yanmar B95W wheel excavator has a tear-out force of 53.2 kN.

What is the bucket capacity of the Yanmar B95W wheel excavator?

The bucket capacity of the Yanmar B95W wheel excavator is 0.348 cubic meters.

How much is a Yanmar B95W Wheel excavator (2019u20132024) worth?

The residual value of the Yanmar B95W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
