XE210WGA XCMG Excavator Specs & Dimensions - (2026 - 2026)

Weight: 21t – Bucket capacity: 0.86m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Max. Reach horizontal: 9.92m – Tear-out forc…

Weight: 21t – Bucket capacity: 0.86m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Max. Reach horizontal: 9.92m – Tear-out force: 137kN

Check out detailed dimensions, specifications, information and technical data for XCMG XE210WGA excavator manufactured between 2026 - 2026. Get more in-depth insight with XCMG XE210WGA digger specifications. See information, like: Weight: 21t – Bucket capacity: 0.86m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Max. Reach horizontal: 9.92m – Tear-out force: 137kN and more.

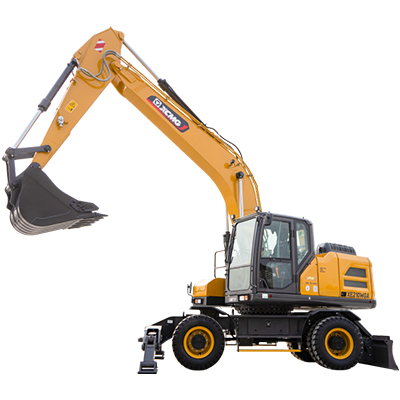

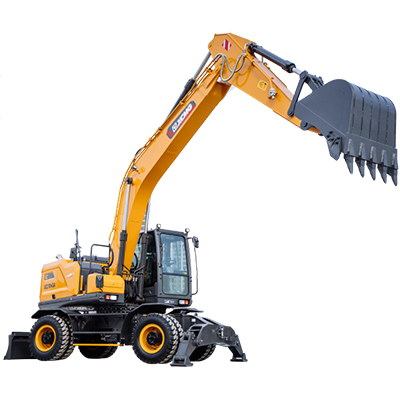

Wheel Excavators XCMG XE210WGA
Wheel Excavators XCMG XE210WGA
Wheel Excavators XCMG XE210WGA
Wheel Excavators XCMG XE210WGA
Wheel Excavators XCMG XE210WGA
Wheel Excavators XCMG XE210WGA

Visit XCMG live at

Technical specs - XE210WGA XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21 t
Bucket capacity
0.86 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Max. Reach horizontal
9.92 m
Tear-out force
137 kN
Model series
XE
Engine manuf.
Cummins
Engine type
k.A.
Engine power
130 kW
Revolutions at max torque
2200 rpm
Emission level
IV

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dredging depth, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dredging depth, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
