9503 Wacker Neuson Excavator Specs & Dimensions - (2008 - 2013)

Model rating
9,00 / 10

Manufactured by Wacker-Neuson, this is the 9503 wheel excavator. Find and download detailed specs and data sheets for this machine…

Manufactured by Wacker-Neuson, this is the 9503 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 74.9kW or 100 horse power, delivered from its powerful Deutz engine to the 10t 9503 machine. This Wacker-Neuson wheel excavator belongs to the smallest machine segment in the wheel excavators category. The 9503’s size is 1.92m x 5.88m x 2.875m.

Quick hitch hydr., Blade and Material Handling Excavator are not provided on this model as of 2013. There are more detailed specifications and machine descriptions available in the original Wacker-Neuson 9503 specs data sheet. Download a free data sheet in Spanish, English, Italian, Swedish, French and German from LECTURA Specs.

The production stopped in 2013, where this 9503 was available at a new list price between €97000 and €124000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Wacker-Neuson models of this type on LECTURA Specs are the EW 100 and EW 65, and 2 other wheel excavators, which currently range from 7t up to 9.9t are also available. Want more detailed specifications? Download the latest Wacker-Neuson 9503 specs data sheet on LECTURA Specs today!

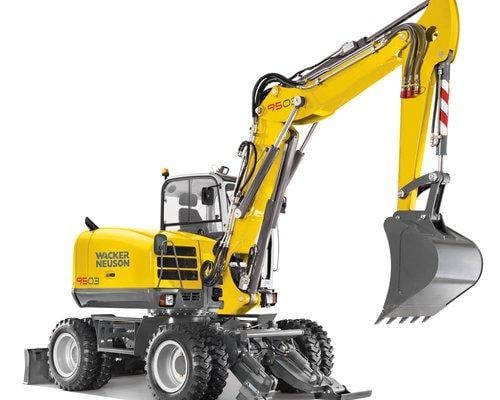

Wheel Excavators Wacker Neuson 9503
Wheel Excavators Wacker Neuson 9503
Wheel Excavators Wacker Neuson 9503
Wheel Excavators Wacker Neuson 9503

Visit Wacker Neuson live at

Technical specs - 9503 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Standard tyres
8.25-20
Boom
MB
Outrigger stabilisers
2/4 2/4-fold
Transport length
5.88 m
Transport width
1.92 m
Transport height
2.875 m
Max. Reach horizontal
6.045 m
Dredging depth
3.58 m
Engine manuf.
Deutz
Engine type
TCD2012
Engine power
74.9 kW
Displacement
4.038 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, tailswing radius, cab height, overall width - stabilisers down, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson 9503 FAQ

When was the Wacker Neuson 9503 manufactured?

The Wacker Neuson 9503 was manufactured from 2008 to 2013.

How much does the Wacker Neuson 9503 weigh?

The Wacker Neuson 9503 weighs 10 tons.

What are the transport dimensions of the Wacker Neuson 9503 wheel excavator?

The Wacker Neuson 9503 has a transport length of 5.88 meters, a transport width of 1.92 meters, and a transport height of 2.88 meters.

What are the undercarriage specifications of the Wacker Neuson 9503 wheel excavator?

The Wacker Neuson 9503 is equipped with 8.25-20 standard tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Wacker Neuson 9503 wheel excavator?

The Wacker Neuson 9503 has a dredging depth of 3.58 meters, a maximum horizontal reach of 6.045 meters, and is equipped with a Monobloc boom.

How much is a Wacker Neuson 9503 Wheel excavator (2008u20132013) worth?

The residual value of the Wacker Neuson 9503 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
9,00 / 10
Quotation mark

Wacker Neuson 9503 user from Norway

Perfect town-machine.
