EW60E Volvo Excavator Specs & Dimensions - (2021 - 2026)

Weight: 5.98t – Transport length: 5.869m – Transport width: 1.93m – Transport height: 2.855m – Max. Reach horizontal: 6.024m – Dre…

Weight: 5.98t – Transport length: 5.869m – Transport width: 1.93m – Transport height: 2.855m – Max. Reach horizontal: 6.024m – Dredging depth: 3.292m

Check out detailed dimensions, specifications, information and technical data for Volvo EW60E excavator manufactured between 2021 - 2026. Get more in-depth insight with Volvo EW60E digger specifications. See information, like: Weight: 5.98t – Transport length: 5.869m – Transport width: 1.93m – Transport height: 2.855m – Max. Reach horizontal: 6.024m – Dredging depth: 3.292m and more.

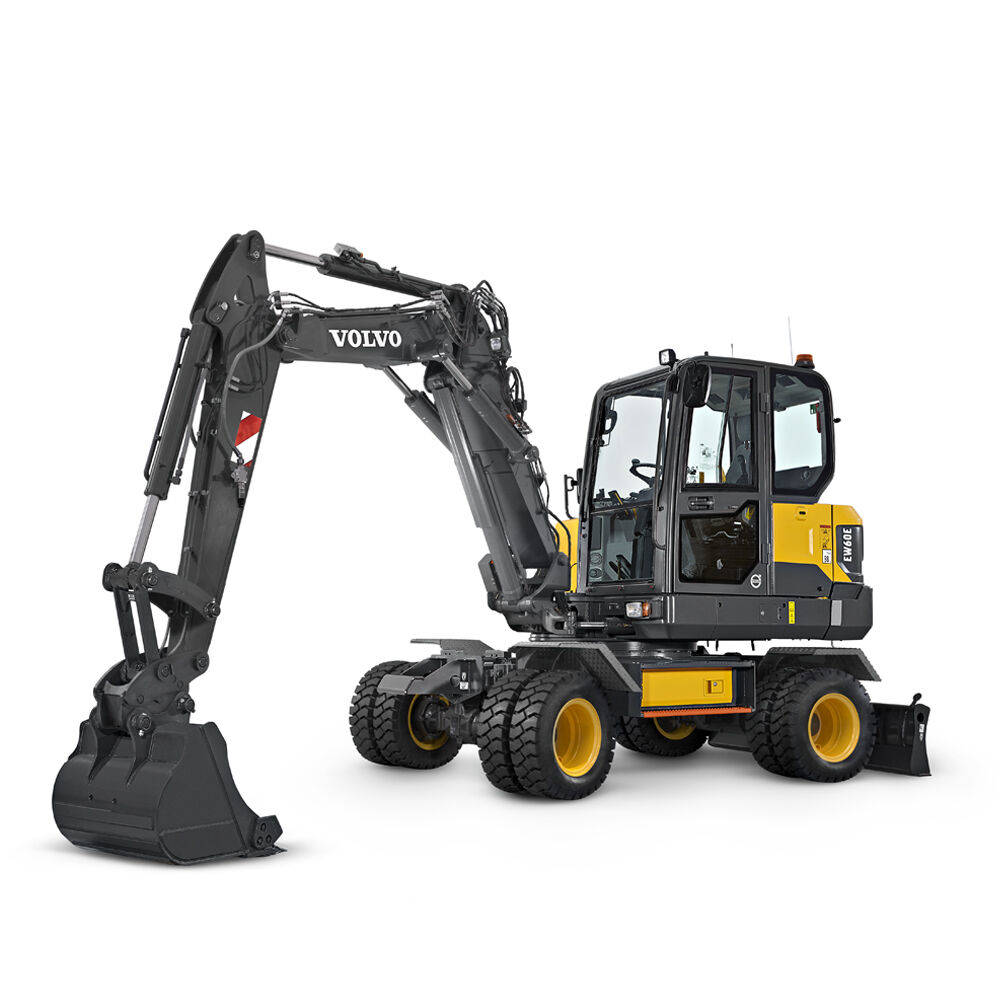

Wheel Excavators Volvo EW60E

Visit Volvo live at

Technical specs - EW60E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.98 t
Transport length
5.869 m
Transport width
1.93 m
Transport height
2.855 m
Max. Reach horizontal
6.024 m
Dredging depth
3.292 m
Tear-out force
37.7 kN
Travel speed
30 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D2.6H
Engine power
45.2 kW
Displacement
2.6 l
Revolutions at max torque
1500 rpm
Max. torque
221.6 Nm
No. of cylinders
4
Cylinder bore x stroke
87x110 mm
Emission level
Stage V

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW60E FAQ

When was the Volvo EW60E manufactured?

The Volvo EW60E was first produced in 2021.

How much does the Volvo EW60E wheel excavator weigh?

The Volvo EW60E wheel excavator weighs 5.98 tons.

What are the transport dimensions of the Volvo EW60E wheel excavator?

The Volvo EW60E has a transport length of 5.87 meters, a transport width of 1.93 meters, and a transport height of 2.86 meters.

What is the travel speed of the Volvo EW60E wheel excavator?

The Volvo EW60E has a travel speed of 30 km/h.

What are the excavation performance specifications of the Volvo EW60E wheel excavator?

The Volvo EW60E has a dredging depth of 3.292 meters and a maximum horizontal reach of 6.024 meters.

What is the tear-out force of the Volvo EW60E wheel excavator?

The Volvo EW60E wheel excavator has a tear-out force of 37.7 kN.

How much is a Volvo EW60E Wheel excavator (2021u20132025) worth?

The residual value of the Volvo EW60E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
