EW60C Volvo Excavator Specs & Dimensions - (2021 - 2026)

Weight: 5.7t – Standard tyres: 12×16.5 -12PR – Bucket capacity: 0.187m³ – Transport length: 5.81m – Transport width: 1.92m – Trans…

Weight: 5.7t – Standard tyres: 12×16.5 -12PR – Bucket capacity: 0.187m³ – Transport length: 5.81m – Transport width: 1.92m – Transport height: 2.82m

Check out detailed dimensions, specifications, information and technical data for Volvo EW60C excavator manufactured between 2021 - 2026. Get more in-depth insight with Volvo EW60C digger specifications. See information, like: Weight: 5.7t – Standard tyres: 12×16.5 -12PR – Bucket capacity: 0.187m³ – Transport length: 5.81m – Transport width: 1.92m – Transport height: 2.82m and more.

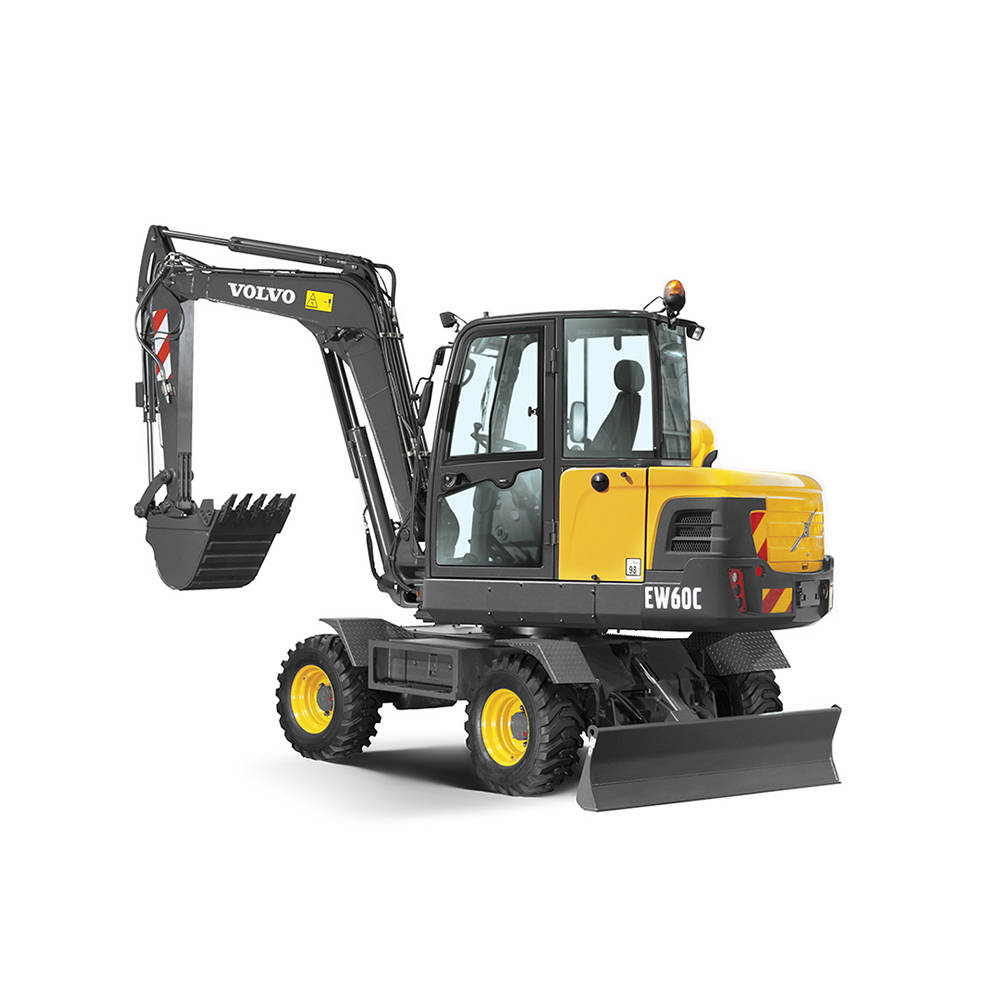

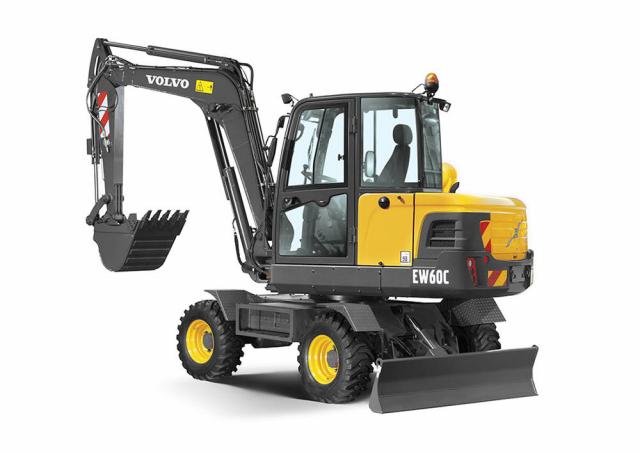

Wheel Excavators Volvo EW60C

Visit Volvo live at

Technical specs - EW60C Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Standard tyres
12×16.5 -12PR
Bucket capacity
0.187 m³
Transport length
5.81 m
Transport width
1.92 m
Transport height
2.82 m
Max. Reach horizontal
6.02 m
Dredging depth
3.327 m
Travel speed
30 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D3.4 DCDE3
Engine power
40.7 kW
Revolutions at max torque
1800 rpm
Max. torque
196 Nm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW60C FAQ

When was the Volvo EW60C manufactured?

The Volvo EW60C was first produced in 2021.

How much does the Volvo EW60C wheel excavator weigh?

The Volvo EW60C wheel excavator weighs 5.7 tons.

What are the transport dimensions of the Volvo EW60C wheel excavator?

The Volvo EW60C has a transport length of 5.81 meters, a transport width of 1.92 meters, and a transport height of 2.82 meters.

What is the travel speed of the Volvo EW60C wheel excavator?

The Volvo EW60C has a travel speed of 30 km/h.

What are the undercarriage specifications of the Volvo EW60C wheel excavator?

The Volvo EW60C wheel excavator comes with standard tyres sized 12u00d716.5 -12PR.

What are the excavation performance specifications of the Volvo EW60C?

The Volvo EW60C has a dredging depth of 3.327 meters and a maximum horizontal reach of 6.02 meters.

What is the bucket capacity of the Volvo EW60C wheel excavator?

The Volvo EW60C wheel excavator has a bucket capacity of 0.187 cubic meters.

How much is a Volvo EW60C Wheel excavator (2021u20132025) worth?

The residual value of the Volvo EW60C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
