EW220E Volvo Excavator Specs & Dimensions - (2016 - 2018)

Volvo is the manufacturer of the wheel excavator model EW 220 E. Find and download detailed specs and data sheets for this machine…

Volvo is the manufacturer of the wheel excavator model EW 220 E. Find and download detailed specs and data sheets for this machine here.

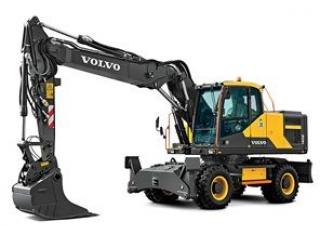

The Volvo EW 220 E is a 22.18t machine with Volvo engine which powers this model with up to 129kW or 172 horse power. The EW 220 E is categorised in the biggest machine segment in the wheel excavators category. The bucket capacity of EW 220 E is 1m³, which is above average for this type of machine.

It has been sold without air Aircondition, Track guidance and Cabin adjustment as of 2017. There are more detailed specifications and machine descriptions available in the original Volvo EW 220 E specs data sheet.

At present, 7 other wheel excavators, which range from 7.2t up to 21.1t are produced by Volvo. Of these, EW 60 E, EW 210 D and also EW 140 D are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Volvo EW 220 E specs data sheet on LECTURA Specs today!

Wheel Excavators Volvo EW220E

Visit Volvo live at

Technical specs - EW220E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.18 t
Bucket capacity
1 m³
Boom
MB
Max. Reach horizontal
10.15 m
Dredging depth
6.31 m
Tear-out force
132 kN
Travel speed
30 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D6J
Engine power
129 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98/126 mm
Emission level
4/Tier 4 f

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW220E FAQ

When was the Volvo EW220E manufactured?

The Volvo EW220E was manufactured from 2016 to 2018.

How much does the Volvo EW220E wheel excavator weigh?

The Volvo EW220E wheel excavator weighs 22.18 tons.

What is the travel speed of the Volvo EW220E wheel excavator?

The Volvo EW220E has a travel speed of 30 km/h.

What are the excavation performance specifications of the Volvo EW220E wheel excavator?

The Volvo EW220E has a dredging depth of 6.31 meters, a maximum horizontal reach of 10.15 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EW220E wheel excavator?

The Volvo EW220E wheel excavator has a tear-out force of 132 kN.

What is the bucket capacity of the Volvo EW220E wheel excavator?

The Volvo EW220E wheel excavator has a bucket capacity of 1 cubic meter.

How much is a Volvo EW220E Wheel excavator (2016u20132018) worth?

The residual value of the Volvo EW220E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
