TW 75 Terex Excavator Specs & Dimensions - (2015 - 2016)

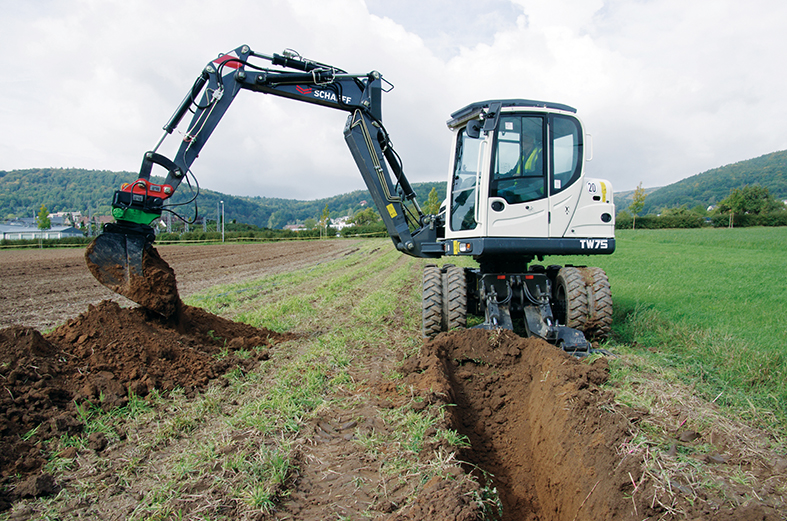

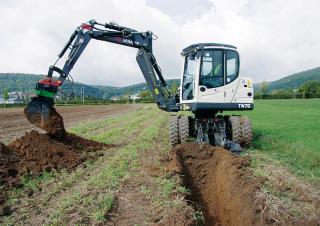

The TW 75 wheel excavator model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here. …

The TW 75 wheel excavator model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here.

This Terex wheel excavator belongs to the smallest machine segment in the wheel excavators category. The model's dimensions are 5.71m x 2.2m x 2.92m. The bucket of TW 75 has a capacity of 0.212m³ which is average for this type of machine.

The TW 75 is manufactured and distributed with Overload alert, Blade and Quick hitch mech.. It does not include Diesel particulate filter, Quick hitch hydr. And Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Terex TW 75 specs data sheet.

This model can be acquired for a list price between €121000 and €153000. Production of the TW 75 stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex TW 75 specs data sheet on LECTURA Specs today!

Wheel Excavators Terex TW 75

Technical specs - TW 75 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.4 t
Standard tyres
8.25-20
Bucket capacity
0.212 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
5.71 m
Transport width
2.2 m
Transport height
2.92 m
Max. Reach horizontal
7.35 m
Dredging depth
3.9 m
Tear-out force
30 kN
Bucket width
0.6 m
Model series
TW

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of articulated booms, total number of dippers - articulated, dipper length - longest articulated, dipper length - standard articulated, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Terex TW 75 FAQ

When was the Terex TW 75 manufactured?

The Terex TW 75 was manufactured from 2015 to 2016.

How much does the Terex TW 75 wheel excavator weigh?

The Terex TW 75 wheel excavator weighs 7.4 tons.

What are the transport dimensions of the Terex TW 75 wheel excavator?

The Terex TW 75 has a transport length of 5.71 meters, a transport width of 2.2 meters, and a transport height of 2.92 meters.

What are the undercarriage specifications of the Terex TW 75 wheel excavator?

The Terex TW 75 wheel excavator is equipped with standard tyres sized 8.25-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Terex TW 75 wheel excavator?

The Terex TW 75 wheel excavator has a dredging depth of 3.9 meters, a maximum horizontal reach of 7.35 meters, and features an adjustable boom.

What is the tear-out force of the Terex TW 75 wheel excavator?

The Terex TW 75 wheel excavator has a tear-out force of 30 kN.

What are the bucket specifications of the Terex TW 75 wheel excavator?

The Terex TW 75 wheel excavator has a bucket capacity of 0.212 cubic meters and a bucket width of 0.6 meters.
