TW 70 Terex Excavator Specs & Dimensions - (2008 - 2014)

Weight: 6.8t – Standard tyres: 8.25-20 – Bucket capacity: 0.303m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length…

Weight: 6.8t – Standard tyres: 8.25-20 – Bucket capacity: 0.303m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 5.71m

Check out detailed dimensions, specifications, information and technical data for Terex TW 70 excavator manufactured between 2008 - 2014. Get more in-depth insight with Terex TW 70 digger specifications. See information, like: Weight: 6.8t – Standard tyres: 8.25-20 – Bucket capacity: 0.303m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 5.71m and more.

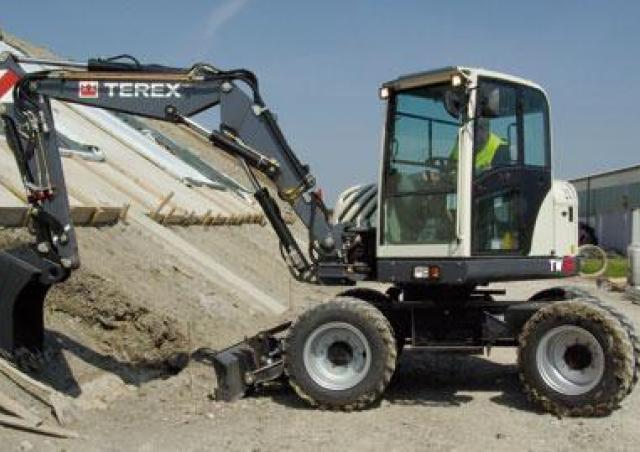

Wheel Excavators Terex TW 70

Technical specs - TW 70 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.8 t
Standard tyres
8.25-20
Bucket capacity
0.303 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
5.71 m
Transport width
2.2 m
Transport height
2.92 m
Max. Reach horizontal
7.1 m
Dredging depth
3.9 m
Tear-out force
30 kN
Bucket width
0.8 m
Model series
TW
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
51.3 kW
Displacement
3.1 l
Revolutions at max torque
1700 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Terex TW 70 FAQ

When was the Terex TW 70 manufactured?

The Terex TW 70 was manufactured from 2008 to 2014.

How much does the Terex TW 70 wheel excavator weigh?

The Terex TW 70 wheel excavator weighs 6.8 tons.

What are the transport dimensions of the Terex TW 70 wheel excavator?

The Terex TW 70 has a transport length of 5.71 meters, a transport width of 2.2 meters, and a transport height of 2.92 meters.

What are the undercarriage specifications of the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator has standard tyres sized 8.25-20 and is equipped with 2 outrigger stabilisers.

What are the excavation performance specifications of the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator has a dredging depth of 3.9 meters, a maximum horizontal reach of 7.1 meters, and features an adjustable boom.

What is the tear-out force of the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator has a tear-out force of 30 kN.

What are the specifications of the bucket on the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator has a bucket with a capacity of 0.303 cubic meters and a width of 0.8 meters.

How much is a Terex TW 70 Wheel excavator (2008u20132014) worth?

The residual value of the Terex TW 70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
