TW 70 Terex Excavator Specs & Dimensions - (2008 - 2014)

The TW 70 wheel excavator model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here. …

The TW 70 wheel excavator model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Yanmar engine, this TW 70 6.8t machine can provide 51.3kW or 68 horse power for the wheel excavator. The Terex TW 70 can be grouped in the smallest machine segment in the wheel excavators category. The TW 70’s size is 2.2m x 5.71m x 2.92m. The bucket of TW 70 has a capacity of 303m³ which is average for this type of machine.

The TW 70 is manufactured and distributed with Overload alert, Quick hitch mech. And Blade. Quick hitch hydr., Cabin adjustment and Aircondition are not provided on this model as of 2014. There are more detailed specifications and machine descriptions available in the original Terex TW 70 specs data sheet. You can download it for free in Spanish, French, Italian, English and German on LECTURA Specs.

The production stopped in 2014, where this TW 70 was available at a new list price between €112000 and €143000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Terex models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. We can see currently about models of the TW 70 wheel excavator with an average age of 5 years and average price of €41500. Want more detailed specifications? Download the latest Terex TW 70 specs data sheet on LECTURA Specs today!

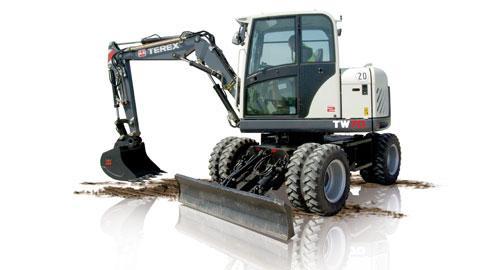

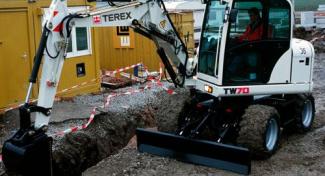

Wheel Excavators Terex TW 70
Wheel Excavators Terex TW 70
Wheel Excavators Terex TW 70
Wheel Excavators Terex TW 70
Wheel Excavators Terex TW 70
Wheel Excavators Terex TW 70

Technical specs - TW 70 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.8 t
Standard tyres
8.25-20
Bucket capacity
0.303 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
5.71 m
Transport width
2.2 m
Transport height
2.92 m
Max. Reach horizontal
7.1 m
Dredging depth
3.9 m
Tear-out force
30 kN
Bucket width
0.8 m
Model series
TW
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
51.3 kW
Displacement
3.1 l
Revolutions at max torque
1700 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, wheelbase, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TW 70 FAQ

When was the Terex TW 70 manufactured?

The Terex TW 70 was manufactured from 2008 to 2014.

How much does the Terex TW 70 weigh?

The Terex TW 70 weighs 6.8 tons.

What are the transport dimensions of the Terex TW 70 wheel excavator?

The Terex TW 70 has a transport length of 5.71 meters, a transport width of 2.2 meters, and a transport height of 2.92 meters.

What are the undercarriage specifications of the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator is equipped with standard tyres sized 8.25-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator has a dredging depth of 3.9 meters, a maximum horizontal reach of 7.1 meters, and features an adjustable boom.

What is the tear-out force of the Terex TW 70 wheel excavator?

The Terex TW 70 wheel excavator has a tear-out force of 30 kN.

What are the specifications of the primary work tool bucket on the Terex TW 70?

The primary work tool bucket of the Terex TW 70 has a capacity of 0.303 cubic meters and a width of 0.8 meters.
