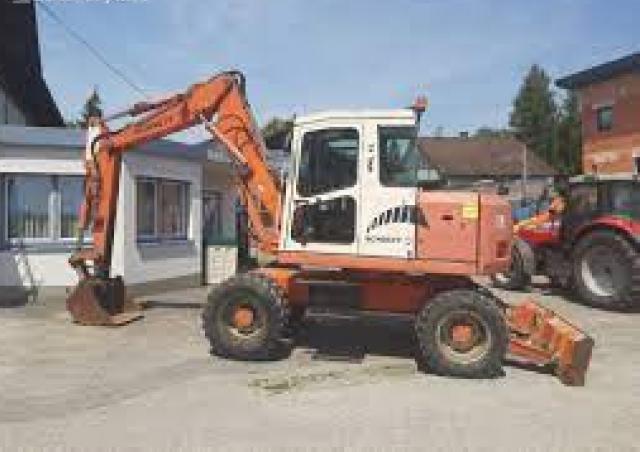

HML 41 Terex-Schaeff Excavator Specs & Dimensions - (1995 - 2002)

Terex-Schaeff is the manufacturer of the wheel excavator model HML 41. Find and download detailed specs and data sheets for this m…

Terex-Schaeff is the manufacturer of the wheel excavator model HML 41. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 60kW or 80 horse power, delivered from its powerful Deutz engine to the 9.5t HML 41 machine. The HML 41 is categorised in the smallest machine segment in the wheel excavators category. The model's dimensions are 5.35m x 2.45m x 3m. The bucket capacity of HML 41 is 0,41m³, which is above average for this type of machine.

Since 1995, this model has included Overload alert. It has been sold without air Material Handling Excavator, Track guidance and Diesel particulate filter as of 2002. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HML 41 specs data sheet. Download a free data sheet in German from LECTURA Specs.

This model can be acquired for a list price between €102000 and €130000. Production of the HML 41 stopped in 2002. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex-Schaeff currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex-Schaeff HML 41 specs data sheet on LECTURA Specs today!

Wheel Excavators Terex-Schaeff HML 41

Technical specs - HML 41 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.5 t
Standard tyres
9.00-20
Bucket capacity
0.41 m³
Boom
MB
Transport length
5.35 m
Transport width
2.45 m
Transport height
3 m
Dredging depth
4.2 m
Tear-out force
67 kN
Model series
HML
Engine manuf.
Deutz
Engine type
BF4M1012E
Engine power
60 kW

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HML 41 FAQ

When was the Terex-Schaeff HML 41 manufactured?

The Terex-Schaeff HML 41 was manufactured from 1995 to 2002.

How much does the Terex-Schaeff HML 41 weigh?

The Terex-Schaeff HML 41 weighs 9.5 tons.

What are the transport dimensions of the Terex-Schaeff HML 41 wheel excavator?

The Terex-Schaeff HML 41 has a transport length of 5.35 meters, a transport width of 2.45 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Terex-Schaeff HML 41 wheel excavator?

The Terex-Schaeff HML 41 is equipped with standard tyres sized 9.00-20.

What are the excavation performance specifications of the Terex-Schaeff HML 41 wheel excavator?

The Terex-Schaeff HML 41 has a dredging depth of 4.2 meters and is equipped with a Monobloc boom.

What is the tear-out force of the Terex-Schaeff HML 41 wheel excavator?

The Terex-Schaeff HML 41 wheel excavator has a tear-out force of 67 kN.

What is the bucket capacity of the Terex-Schaeff HML 41 wheel excavator?

The Terex-Schaeff HML 41 wheel excavator has a bucket capacity of 0.41 cubic meters.

How much is a Terex-Schaeff HML 41 Wheel excavator (1995u20132002) worth?

The residual value of the Terex-Schaeff HML 41 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
